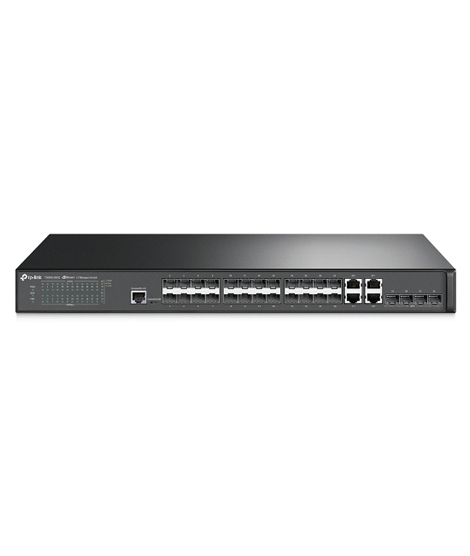

TP-Link JetStream 28-Port Gigabit SFP L2 Managed Switch (T2600G-28SQ)

SKU : AND1-0589-MP

Rs. 191,936

Sold by VPN Wireless Traders

1.7

33% Positive Seller Ratings

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping.pk brings you the best price for TP-Link JetStream 28-Port Gigabit SFP L2 Managed Switch (T2600G-28SQ) with express shipping all over Pakistan.

• 24 Gigabit fiber connections and 10G SFP+ fiber interfaces provide more than enough bandwidth and stability for hi-speed data transmission

• 4 Combo Gigabit Ethernet ports for easy copper wiring

• L2+ feature Static Routing, helps to route traffic between subnets without an extra router

• IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide all the tools you need for robust security policies

• L2/L3/L4 QoS and IGMP snooping optimize voice and video application

• IPv6 functions including dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery

• Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image for easy management and monitoring

Specification:

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
	IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
	IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface	24 Gigabit SFP Slots
	4 Combo 10/100/1000 Mbps RJ45 Ports
	4 10G SFP+ Slots
	1 RJ45 Console Port
	1 Micro-usb Console Port
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
	100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
	(maximum 100m)
	1000BASE-X: MMF, SMF
	10GBASE-X:MMF, SMF
	10GSFP+CU “SFP+ Direct Attach Cable” (TXC432-CU1M, TXC432-CU3M)
Fan Quantity	2-Jan-1900
Physical Security Lock	Yes
Power Supply	100~240VAC, 50/60Hz
Dimensions ( W x D x H )	17.3 × 8.7 × 1.7 in.
Dimensions ( W x D x H )	(440 × 220 × 44 mm)
Mounting	19" 1U rack mountable
Max Power Consumption	29.7W
Max Heat Dissipation	101.2 BTU/h
PERFORMANCE
Bandwidth/Backplane	128Gbps
Packet Forwarding Rate	95.2Mpps
MAC Address Table	16k
Jumbo Frame	9216 Bytes
SOFTWARE FEATURES
Quality of Service	Support 802.1p CoS/DSCP priority
	Support 8 priority queues
	Queue scheduling: SP, WRR, SP+WRR
	Port/Flow- based Rate Limiting
	Voice VLAN
L2 and L2+ Features	Static Routing
	DHCP Relay
	IGMP Snooping V1/V2/V3
	802.3ad LACP (Up to 14 aggregation groups, 8 ports per group)
	Spanning Tree STP/RSTP/MSTP
	BPDU Filtering/Guard
	TC/Root Protect
	Loopback detection
	802.3x Flow Control
	L2PT
VLAN	Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
	802.1Q/ MAC/Protocol-based/Private VLAN
	GARP/GVRP
Security	IP-MAC-Port Binding
	AAA
	802.1x and Radius Authentication
	DoS Defend
	Dynamic ARP Inspection (DAI)
	SSH v1/v2
	SSL v3/TLSv1
	Port Security
	Broadcast/Multicast/Unknown-unicast Storm Control
IPv6	Dual IPv4/IPv6 stack
	Multicast Listener Discovery (MLD) Snooping
	IPv6 neighbor discovery (ND)
	Path maximum transmission unit (MTU) discovery
	Internet Control Message Protocol (ICMP) version 6
	TCPv6/UDPv6
	IPv6 ACL
	DHCPv6 Snooping
	IPv6 Interface
IPv6 Applications	DHCPv6 Client
	Ping6
	Tracert6
	Telnet(v6)
	IPv6 SNMP
	IPv6 SSH
	IPv6 SSL
	Http/Https
	IPv6 TFTP
	IPv6 ACL
	IPv6 Interface
	IPv6 Routing
	DHCPv6 Relay
	DHCPv6 Snooping
Management	Web-based GUI and CLI management
	SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
	RMON (1, 2, 3, 9 groups)
	sFlow
	PPPoE Circuit ID
	DHCP Relay
	DHCP Server
	DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
	Dual Image
	CPU Monitoring
	Port Mirroring
	Time Setting: SNTP
	Integrated NDP/NTDP feature
	Firmware Upgrade: TFTP & Web
	System Diagnose: VCT
	SYSLOG & Public MIBS
	Password Recovery
Access Control	L2～L4 package filtering based on source and destination MAC address,
	IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
	Time Range Based
OTHERS
Certification	FCC, RoHS
Package Contents	Switch
	Power Cord
	Installation Guide
	Resource CD
	Rackmount Kit
	Rubber Feet
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉);
	Storage Temperature: -40℃~70℃ (-40℉~158℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing

What This Product Does

TP-Link's JetStream T2600G-28SQ provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and ISP grade traffic control and monitoring features. With 24 gigabit SFP slots, 4 10/100/1000 Mbps RJ45 ports and 4 10G SFP+ slots, T2600G-28SQ ensures a highly stable and high-speed network environment. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitates network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2 managed Switches T2600G-28SQ provides a reliable, secure solution for enterprise, campus and ISP networks.
