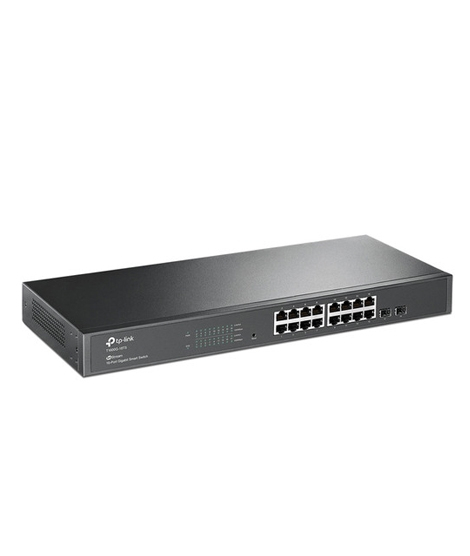

TP-Link JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots T1600G-18TS (TL-SG2216)
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for TP-Link JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots T1600G-18TS (TL-SG2216) with express shipping all over Pakistan
Specifications:
|
Hardware |
|
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
|
Interface |
16 x 10/100/1000 Mb/s RJ45 ports (auto negotiation/auto MDI/MDIX) |
|
2 x Gigabit SFP Slots |
|
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 328' / 100 m) |
|
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 328' / 100 m) |
|
|
1000BASE-X: MMF, SMF |
|
|
Fan Quantity |
Fanless |
|
Power Supply |
100~240 VAC, 50/60 Hz |
|
Power Consumption |
12.3 W |
|
Performance |
|
|
Bandwidth |
36 Gb/s |
|
Packet Forwarding Rate |
26.8 Mpps |
|
MAC Address Table |
8K |
|
Jumbo Frame |
9 KB |
|
Software |
|
|
Quality of Service (QoS) |
Support 802.1p CoS/DSCP priority |
|
Support 8 priority queues |
|
|
Queue Scheduling: SP, WRR, SP+WRR |
|
|
Port/Flow- based Rate Limiting |
|
|
IPv6 QoS |
|
|
Voice VLAN |
|
|
L2 Features |
L2 and L2+ Features |
|
Static Routing |
|
|
DHCP Relay |
|
|
IGMP Snooping V1/V2/V3 |
|
|
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) |
|
|
Spanning Tree STP/RSTP/MSTP |
|
|
BPDU Filtering/Guard |
|
|
TC/Root Protect |
|
|
Loopback detection |
|
|
802.3x Flow Control |
|
|
LLDP, LLDP-MED |
|
|
VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) |
|
MAC/Protocol-based VLAN |
|
|
Access Control List |
L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports |
|
IPv6 ACL |
|
|
Security |
AAA |
|
Port Security |
|
|
DHCP Snooping |
|
|
IP-MAC-Port Binding |
|
|
ARP Inspection |
|
|
802.1x and Radius Authentication |
|
|
SSH v1/v2 |
|
|
SSL v3/TLSv1 |
|
|
Broadcast/Multicast/Unknown-unicast Storm Control |
|
|
Dos Defend |
|
|
IPv6 |
IPv6 |
|
Dual IPv4/IPv6 stack |
|
|
Multicast Listener Discovery (MLD) Snooping |
|
|
IPv6 neighbor discovery (ND) |
|
|
Path maximum transmission unit (MTU) discovery |
|
|
Internet Control Message Protocol (ICMP) version 6 |
|
|
TCPv6/UDPv6 |
|
|
IPv6 Applications |
|
|
DHCPv6 Client |
|
|
Ping6 |
|
|
Tracert6 |
|
|
Telnet (v6) |
|
|
IPv6 SNMP |
|
|
IPv6 SSH |
|
|
IPv6 SSL |
|
|
Http/Https |
|
|
IPv6 TFTP |
|
|
Management |
Web-based GUI and CLI management |
|
SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs |
|
|
RMON (1, 2, 3, 9 groups) |
|
|
CPU Monitoring |
|
|
Port Mirroring |
|
|
Firmware Upgrade: TFTP & Web |
|
|
System Diagnose: VCT |
|
|
SYSLOG & Public MIBS |
|
|
Dual Image |
|
|
Other Specifications |
|
|
Certifications |
CE, FCC, RoHS |
|
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux |
|
Temperature & Humidity |
Operating Temperature |
|
32 to 104°F / 0 to 40°C |
|
|
Storage Temperature |
|
|
-40 to 158°F / -40 to 70°C |
|
|
Operating Humidity |
|
|
10 to 90% non-condensing |
|
|
Storage Humidity |
|
|
5 to 90% non-condensing |
|
Specification
