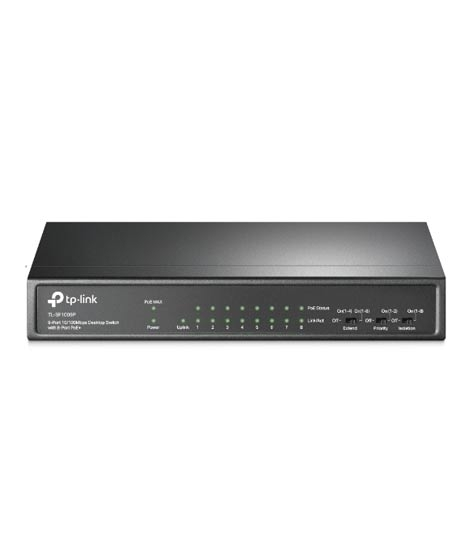

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (TL-SF1009P)
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
Desktop Switch Delivered All Over Pakistan
iShopping.pk brings you the best price for TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (TL-SF1009P) with express shipping all over Pakistan.
Features:
9× 10/100 Mbps RJ45 ports
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play with no configuration required
Professional 9-Port Unmanaged Switch with 8 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
Ideal for IP Surveillance Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-8
With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
Specification:
|
HARDWARE FEATURES |
|
|
Interface |
9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) |
|
AUTO Negotiation |
|
|
AUTO MDI/MDIX |
|
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
Fan Quantity |
Fanless |
|
Physical Security Lock |
Yes |
|
External Power Supply |
External Power Adapter (Output: 53.5VDC / 1.3A) |
|
Packet Forwarding Rate |
1.3392 Mpps |
|
PoE Ports (RJ45) |
Standard: 802.3 af/at compliant |
|
PoE Ports: Ports 1–8 |
|
|
Power Supply: 65 W |
|
|
Mac Address Table |
2K |
|
Jumbo Frame |
2 KB |
|
Switching Capacity |
1.8 Gbps |
|
Dimensions ( W x D x H ) |
6.7 × 3.9 × 1.1 in |
|
(171 × 98 × 27 mm) |
|
|
Max Power Consumption |
3.6 (no PD connected) |
|
77.1 (with 65 W PD connected) |
|
|
Max Heat Dissipation |
12.3 BTU/h (no PD connected) |
|
262.8 BTU/h (with 65 W PD connected) |
|
|
SOFTWARE FEATURES |
|
|
Transmission Method |
Store-And-Forward |
|
Advanced Functions |
Compatible With IEEE 802.3af/at Compliant PDs |
|
Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) |
|
|
Priority Mode Button (Ports 1–2) |
|
|
Isolation Mode Button (Ports 1–8) |
|
|
Mac Address Auto-Learning and Auto-Aging |
|
|
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
|
|
OTHERS |
|
|
Certification |
FCC, CE, RoHS |
|
Package Contents |
TL-SF1009P |
|
Power Adapter |
|
|
Installation Guide |
|
|
Environment |
Operating Temperature: 0–40 ℃ (32–104 ℉) |
|
Storage Temperature: -40–70 ℃ (-40–158 ℉) |
|
|
Operating Humidity: 10–90% RH non-condensing |
|
|
Storage Humidity: 5–90% RH non-condensing |
|
