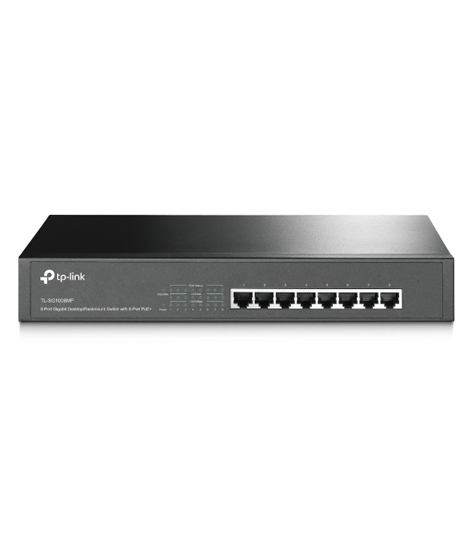

TP-Link 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ (TL-SG1008MP)
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for TP-Link 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ (TL-SG1008MP) with express shipping all over Pakistan.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Specification:
|
HARDWARE FEATURES |
|
|
Interface |
8 10/100/1000Mbps RJ45 Ports |
|
AUTO Negotiation/AUTO MDI/MDIX |
|
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
Fan Quantity |
1-Jan-1900 |
|
Power Supply |
100-240VAC, 50/60Hz |
|
PoE+ Ports(RJ45) |
Standard: 802.3at/af (30W) |
|
PoE+ Ports: 8 Ports |
|
|
Total PoE Budget: 126W |
|
|
Backbound Bandwidth |
16Gbps |
|
Mac Address Table |
4K |
|
Buffer Size |
1.5Mbits |
|
Dimensions ( W x D x H ) |
11.6 × 7.1 × 1.7 in. |
|
(294 × 180 × 44 mm) |
|
|
Mounting |
13" and 19" 1U rack mountable |
|
Max Power Consumption |
9.9W(no PD load) |
|
144.4W(with 124W PD load) |
|
|
Max Heat Dissipation |
33.7BTU/h(no PD load) |
|
492.6BTU/h(with 124W PD load) |
|
|
SOFTWARE FEATURES |
|
|
Advanced Features |
Compatible With IEEE 802.3af/at Compliant power devices (PD) |
|
Port Priority Function |
|
|
MAC Address Auto-Learning And Auto-Aging |
|
|
IEEE802.3x Flow Control |
|
|
Transfer Method |
Store-And-Forward |
|
OTHERS |
|
|
Certification |
FCC, RoHS |
|
Package Contents |
TL-SG1008MP |
|
Power Cord |
|
|
Installation Guide |
|
|
Rackmount Kit |
|
|
Rubber Feet |
|
|
Consumption |
9.5 watts (max. no PD connected) |
|
140.1 watts (max. with 126w PD connected) |
|
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
|
Storage Temperature: -40℃~70℃ (-40℉~158℉) |
|
|
Operating Humidity: 10%~90% non-condensing |
|
|
Storage Humidity: 5%~90% non-condensing |
|
What This Product Does
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
Specification
