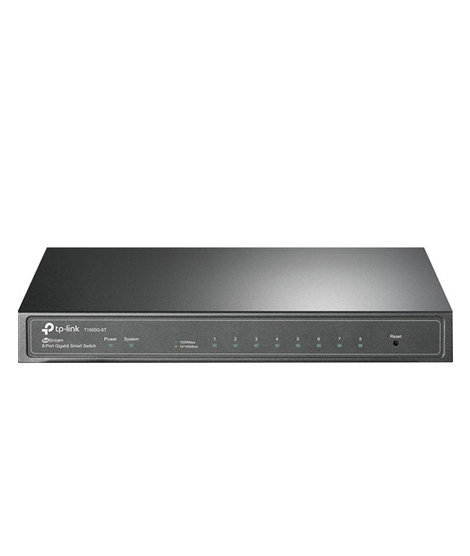

TP-Link 8-Port Gigabit Smart Managed Switch T1500G-8T (TL-SG2008)
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for TP-Link 8-Port Gigabit Smart Managed Switch T1500G-8T (TL-SG2008) with express shipping all over Pakistan
Specifications:
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
|
Interface |
8 x 10/100/1000 Mb/s RJ45 ports |
|
Port 8 obtain power from PoE source |
|
|
(Auto-Negotiation/Auto MDI/MDIX) |
|
|
Network Media |
10BASE-T: UTP category 3, 4, or 5 cable (maximum 328' / 100 m) |
|
100BASE-TX/1000Base-T: UTP category 5, 5e, or above cable (maximum 328' / 100 m) |
|
|
Fan Quantity |
Fanless |
|
Power Supply |
100~240 VAC, 50/60 Hz |
|
External Power Adapter (Output: 12 VDC/1 A) |
|
|
Obtain power from PoE source |
|
|
Power Consumption |
Maximum: 5.75 W (220 V/50 Hz) |
|
PD Port |
Port 8 IEEE 802.3af/at (RJ45) |
|
Performance |
Bandwidth/Backplane |
|
16 Gb/s |
|
|
Packet Forwarding Rate |
|
|
11.9 Mpps |
|
|
MAC Address Table |
|
|
8K |
|
|
Jumbo Frame |
|
|
9216 bytes |
|
|
Quality of Service (QoS) |
802.1p CoS/DSCP priority |
|
4 priority queues |
|
|
Queue Scheduling: SP, WRR, SP+WRR |
|
|
Port/Flow-based Rate Limiting |
|
|
Voice VLAN |
|
|
L2 Features |
IGMP Snooping V1/V2/V3 |
|
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) |
|
|
Spanning Tree STP/RSTP/MSTP |
|
|
BPDU Filtering/Guard |
|
|
TC/Root Protect |
|
|
Loop back detection |
|
|
802.3x Flow Control |
|
|
LLDP, LLDP-MED |
|
|
VLAN |
Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
|
Access Control List (ACL) |
L2～L4 package filtering based on source and destination MAC address, IP address, and TCP/UDP ports |
|
Security |
Port Security |
|
DHCP Snooping |
|
|
IP-MAC-Port Binding |
|
|
ARP Inspection |
|
|
802.1x and Radius Authentication |
|
|
SSH v1/v2 |
|
|
SSL v3/TLSv1 |
|
|
Broadcast/Multicast/Unknown-Unicast Storm Control |
|
|
Dos Defend |
|
|
Management |
Web-based GUI |
|
Command Line Interface(CLI) through Telnet |
|
|
SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs |
|
|
RMON (1, 2, 3, 9 groups) |
|
|
CPU Monitoring |
|
|
Port Mirroring |
|
|
Time Setting: SNTP |
|
|
Firmware Upgrade: TFTP & Web |
|
|
System Diagnose: VCT |
|
|
SYSLOG & Public MIBS |
|
|
Dual Image |
|
|
Certifications |
CE, FCC, RoHS |
|
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX, or Linux |
|
Temperature & Humidity |
Operating Temperature |
|
32 to 104°F / 0 to 40°C |
|
|
Storage Temperature |
|
|
-40 to 158°F / -40 to 70°C |
|
|
Operating Humidity |
|
|
10 to 90% non-condensing |
|
|
Storage Humidity |
|
|
5 to 95% non-condensing |
|
|
Dimensions |
8.2 x 5.0 x 1.0" / 20.9 x 12.6 x 2.6 cm |
