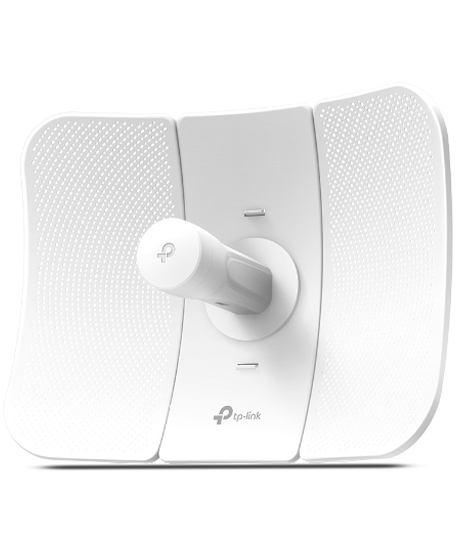

TP-Link 5GHz 300Mbps 23dBi Outdoor CPE (CPE610)
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for TP-Link 5GHz 300Mbps 23dBi Outdoor CPE (CPE610) with express shipping all over Pakistan.
2×2 MIMO MAXtream TDMA
23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission
Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.
Pharos Control – Centralized Management System
CPE610 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method, and allows professionals to access more detailed configurations.
Specification:
|
HARDWARE FEATURES |
|
|
Processor |
Qualcomm 560MHz CPU, MIPS 74Kc |
|
Memory |
64MB DDR2 RAM,8MB Flash |
|
Interface |
1 10/100Mbps Shielded Ethernet Port (LAN/POE) |
|
1 Reset Button |
|
|
Power Supply |
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) |
|
Voltage range: 16-27VDC |
|
|
Dimensions ( W x D x H ) |
366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
|
Antenna Gain |
23dBi |
|
Antenna Beamwidth |
9°(Azimuth), 7°(Elevation) |
|
Protection |
15KV ESD Protection |
|
6KV Lightning Protection |
|
|
Enclosure |
Material: Outdoor PC stabilized plastic |
|
Weatherproof: IP65 water and dust proof design |
|
|
WIRELESS FEATURES |
|
|
Wireless Standards |
IEEE 802.11a/n |
|
Proprietary Protocol |
TDMA Mode (with Pharos MAXtream enabled) |
|
Wireless Speeds |
Up to 300Mbps (40MHz,Dynamic) |
|
Up to 144.4Mbps (20MHz,Dynamic) |
|
|
Up to 72.2Mbps (10MHz,Dynamic) |
|
|
Up to 36.1Mbps (5MHz,Dynamic) |
|
|
Frequency |
5.15~5.85GHz |
|
Transmit Power |
Max. 27dBm (Adjustable power by 1dBm) |
|
SOFTWARE FEATURES |
|
|
Network Configuration |
WAN: Static/Dynamic/PPPoE/L2TP/PPTP |
|
LAN: Static/Dynamic/DHCP |
|
|
Forwarding: ALG/UPnP/Virtual Server/Port Trigger |
|
|
Security: SPI Firewall/ Ping Forbidden/DoS Protection |
|
|
Access Control |
|
|
Static Routing |
|
|
Bandwidth Control |
|
|
IP & MAC Binding |
|
|
Wireless Configurations |
Pharos MAXtream TDMA Technology |
|
Selectable Channel Width: 5/10/20/40MHz |
|
|
Auto Channel Selection |
|
|
Transmit Power Control |
|
|
Dynamic Frequency Selection(DFS) |
|
|
WDS Enable/Disable |
|
|
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, |
|
|
64/128/152-bit WEP Encryption |
|
|
SSID Broadcast Enable/Disable |
|
|
Multi-SSID with VLAN Tagging(AP Mode only) |
|
|
Distance/ACK Timeout Setting |
|
|
Wireless MAC Address Filter |
|
|
Wireless Advanced: |
|
|
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
|
|
Management |
Discovery and Remote Management via Pharos Control application |
|
HTTP/HTTPS Web-based management |
|
|
System log |
|
|
SNMP Agent(v2c) |
|
|
Ping Watch Dog |
|
|
Dynamic DDNS |
|
|
SSH Server |
|
|
System Tools |
Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory |
|
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP |
|
|
Spectrum Analyzer |
|
|
Speed Test |
|
|
Ping |
|
|
Traceroute |
|
|
System-level Optimizations |
Optimized IGMP Snooping/Proxy for multicast applications |
|
Hardware watch dog |
|
|
POE ADAPTER FEATURES |
|
|
Dimensions(W x D x H) |
85.8×43.9×29.7 mm |
|
Interfaces |
1 AC Jack with Earth Ground |
|
1 10/100Mbps Shielded Ethernet Port (Power + Data) |
|
|
1 10/100Mbps Shielded Ethernet Port (Data) |
|
|
Button |
Remote Reset Button |
|
Power Status LEDs |
Green |
|
Input |
100-240VAC, 50/60Hz |
|
Output |
24VDC, 0.6A Max |
|
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
|
|
Efficiency |
>84.29% |
|
Certifications |
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
|
OTHERS |
|
|
Certification |
CE, FCC, IC, RoHS, IP65 |
|
Package Contents |
Outdoor Wireless CPE |
|
24V 0.5A Passive PoE Adapter |
|
|
Pole Mounting Straps |
|
|
AC Power Cord |
|
|
Installation Guide |
|
|
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
|
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
|
|
Environment |
Operating Temperature: -40℃~70℃ (-40℉~158℉) |
|
Storage Temperature: -40℃~70℃ (-40℉~158℉) |
|
|
Operating Humidity: 10%~90% non-condensing |
|
|
Storage Humidity: 5%~95% non-condensing |
|
