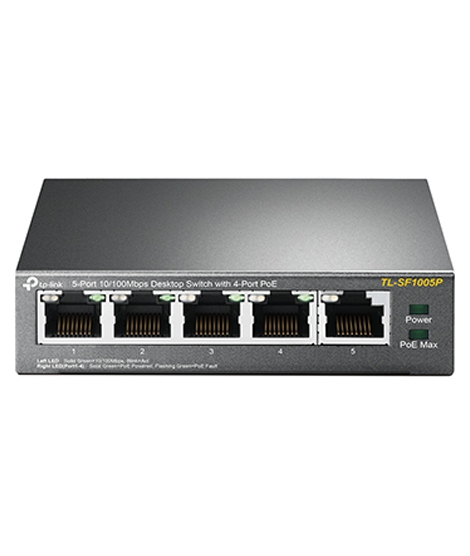

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE (TL-SF1005P)

SKU : AND1-0601-MP

Rs. 13,013

Sold by VPN Wireless Traders

1.7

33% Positive Seller Ratings

FREE RETURNGet free returns on eligible items

Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.

Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home

About this Item

iShopping.pk brings you the best price for TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE (TL-SF1005P) with express shipping all over Pakistan.

Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Overload Arrangement

TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function

Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.

Easy To Use

TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.

Specification:

HARDWARE FEATURES
Interface	5 10/100Mbps RJ45 Ports
Interface	AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
	EIA/TIA-568 100Ω STP (maximum 100m)
	100BASE-TX: UTP category 5, 5e cable (maximum 100m)
	EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45)	Standard: 802.3 af compliant
	PoE Ports: Port1- Port4
	Power Supply: 58W
Mac Address Table	2K
Switching Capacity	1Gbps
Dimensions ( W x D x H )	3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Transmission Distance	Store-And-Forward
Max Power Consumption	63.51W (max. with 58w PD connected)
Max Power Consumption	1.70W (max. no PD connected)
Max Heat Dissipation	5.73BTU/h(no PD connected)
Max Heat Dissipation	221.17BTU/h(with 58W PD connected)
SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	Compatible With IEEE 802.3af Compliant PDs
	Priority Function
	Mac Address Auto-Learning And Auto-Aging
	IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-SF1005P, Power Adapter, User Guide
Consumption	1.70 watts (max. no PD connected)
Consumption	63.51 watts (max. with 58w PD connected)
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉)
	Storage Temperature: -40℃~70℃ (-40℉~158℉)
	Operating Humidity: 10%~90%RH non-condensing
	Storage Humidity: 5%~90%RH non-condensing

What This Product Does

TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
