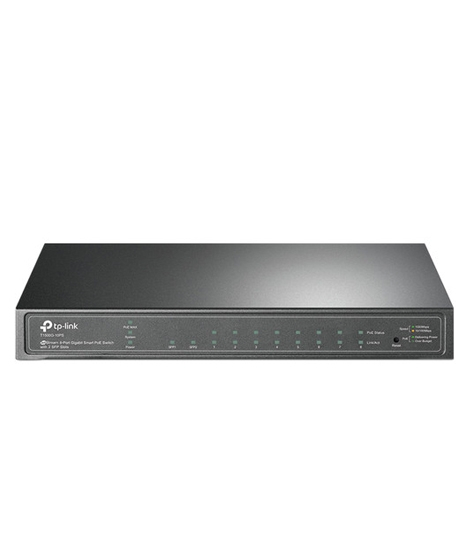

TP-Link JetStream 10-Port Gigabit Smart Switch With 8-Port PoE+ (TL-SG2210P)
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
Gigabit Smart Switch Delivered All Over Pakistan
iShopping.pk brings you the best price for TP-Link JetStream 10-Port Gigabit Smart Switch With 8-Port PoE+ (TL-SG2210P) with express shipping all over Pakistan
Features:
61 W PoE Budget: 8× 802.3af/at-compliant PoE+ ports with a total power supply of 61 W*.
Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.
Software-Defined Networking (SDN) with Cloud Access
Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Switches for Surveillance
For general surveillance, TP-Link has designed a variety of PoE Switches to meet the requirements of most IPCs. Many robust features provide value well beyond basic networking needs, creating a versatile and reliable surveillance network to grow your business.
• Long-Range PoE
• Auto Camera Recovery
• Enhanced Network Security
Hospitality
TP-Link Omada allows hotels to build reliable WiFi networks. Hotel WiFi network solutions including network topology, design, features, installation, and products are introduced.
• Full WiFi coverage and wired connections
• Flexible guest control
• Seamless roaming
Education
Due to its reliable, scalable, and secure network solution, TP-Link has been widely acknowledged by global customers in the Education market ranging from infant schools with a few APs up to colleges and universities with hundreds of APs.
• Easy management
• High-density WiFi
• Full WiFi coverage and wired connections
Specifications:
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, |
|
IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, |
|
|
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
|
|
Interface |
8 10/100/1000Mbps RJ45 Ports |
|
2 1000Mbps SFP Slots |
|
|
(Auto-Negotiation/Auto MDI/MDIX) |
|
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
|
|
1000BASE-X: MMF, SMF |
|
|
Fan Quantity |
Fanless |
|
Power Supply |
100~240VAC, 50/60Hz |
|
External Power Adapter(Output: 54VDC/1.3A) |
|
|
Power Consumption |
10.3W (without POE device connected) |
|
76.5W (with 61W POE devices connected) |
|
|
PoE Ports (RJ45) |
Standard: 802.3af/at compliant |
|
PoE Ports: 8 Ports |
|
|
Power Supply: 61 W* |
|
|
Dimensions ( W x D x H ) |
8.2 x 4.9 x 1.0 in. |
|
(209 x 126 x 26mm) |
|
|
Performance |
|
|
Bandwidth/Backplane |
20 Gbps |
|
Packet Forwarding Rate |
14.88 Mpps |
|
MAC Address Table |
8K |
|
Packet Buffer Memory |
4.1 Mbit |
|
Jumbo Frame |
9 KB |
|
Software Features |
|
|
Quality of Service |
802.1p CoS/DSCP priority |
|
8 priority queues |
|
|
Priority Schedule Mode |
|
|
- SP (Strict Priority) |
|
|
- WRR (Weighted Round Robin) |
|
|
Queue Weight Config |
|
|
Bandwidth Control |
|
|
- Port/Flow-based Rating Limit |
|
|
Smoother Performance |
|
|
Storm Control |
|
|
- Multiple Control Modes(kbps/ratio) |
|
|
- Broadcast/Multicast/Unknown-Unicast Control |
|
|
L2 and L2+ Features |
16 IP Interfaces |
|
- Support IPv4/IPv6 Interface |
|
|
Static Routing |
|
|
- 32 IPv4/IPv6 Static Routes |
|
|
DHCP Server |
|
|
DHCP Relay |
|
|
- DHCP Interface Relay |
|
|
- DHCP VLAN Relay |
|
|
DHCP L2 Relay |
|
|
Static ARP |
|
|
Proxy ARP |
|
|
Gratuitous ARP |
|
|
Link Aggregation |
|
|
- Static link aggregation |
|
|
- 802.3ad LACP |
|
|
- Up to 8 aggregation groups and up to 8 ports |
|
|
per group |
|
|
Spanning Tree Protocol |
|
|
- 802.1D STP |
|
|
- 802.1w RSTP |
|
|
- 802.1s MSTP |
|
|
- STP Security: TC Protect, BPDU Filter/Protect, |
|
|
Root Protect |
|
|
Loopback Detection |
|
|
Flow Control |
|
|
- 802.3x Flow Control |
|
|
Mirroring |
|
|
- Port Mirroring |
|
|
- CPU Mirroring |
|
|
- One-to-One |
|
|
- Many-to-One |
|
|
- Flow-Based |
|
|
- Ingress/Egress/Both |
|
|
Device Link Detect Protocol (DLDP) |
|
|
802.1ab LLDP/ LLDP-MED |
|
|
VLAN |
VLAN Group |
|
- Max. 4K VLAN Groups |
|
|
802.1Q tag VLAN |
|
|
MAC VLAN |
|
|
Protocol VLAN |
|
|
GVRP |
|
|
Voice VLAN |
|
|
Access Control List |
Support up to 230 entries |
|
Time-Range |
|
|
- Time Slice |
|
|
- Week Time-Range |
|
|
- Absolute Time-Range |
|
|
- Holiday |
|
|
Time-based ACL |
|
|
MAC ACL |
|
|
- Source MAC |
|
|
- Destination MAC |
|
|
- VLAN ID |
|
|
- User Priority |
|
|
- Ether Type |
|
|
IP ACL |
|
|
- Source IP |
|
|
- Destination IP |
|
|
- IP Protocol |
|
|
- TCP Flag |
|
|
- TCP/UDP Source Port |
|
|
- TCP/UDP Destination Port |
|
|
- DSCP/IP TOS |
|
|
IPv6 ACL |
|
|
Combined ACL |
|
|
Rule Operation |
|
|
- Permit/Deny |
|
|
Policy Action |
|
|
- Mirror |
|
|
- Rate Limit |
|
|
- Redirect |
|
|
- QoS Remark |
|
|
ACL Rules Binding |
|
|
- Port Binding |
|
|
- VLAN Binding |
|
|
Actions for flows |
|
|
- Mirror (to supported interface) |
|
|
- Redirect (to the supported interface) |
|
|
- Rate Limit |
|
|
- QoS Remark |
|
|
Security |
AAA |
|
802.1X |
|
|
- Port-based authentication |
|
|
- MAC (Host) based authentication |
|
|
- Authentication Method includes PAP/EAP-MD5 |
|
|
- MAB |
|
|
- Guest VLAN |
|
|
- Support Radius authentication and |
|
|
accountability |
|
|
IP/IPv6-MAC Binding |
|
|
- 512 Binding Entries |
|
|
- DHCP Snooping |
|
|
- DHCPv6 Snooping |
|
|
- ARP Inspection |
|
|
- ND Detection |
|
|
IP Source Guard |
|
|
- 253 Entries |
|
|
- Source IP+Source MAC |
|
|
IPv6 Source Guard |
|
|
- 183 Entries |
|
|
- Source IPv6 Address+Source MAC |
|
|
DoS Defend |
|
|
Static/Dynamic/Permanent Port Security |
|
|
- Up to 64 MAC addresses per port |
|
|
Broadcast/Multicast/Unicast Storm Control |
|
|
- kbps/ratio control mode |
|
|
Port Isolation |
|
|
Secure web management through HTTPS with |
|
|
SSLv3/TLS 1.2 |
|
|
Secure Command Line Interface (CLI) |
|
|
management with SSHv1/SSHv2 |
|
|
IP/Port/MAC-based access control |
|
|
Management |
Web-based GUI |
|
Command Line Interface (CLI) through telnet |
|
|
SNMPv1/v2c/v3 |
|
|
SNMP Trap/Inform |
|
|
RMON (1,2,3,9 groups) |
|
|
SDM Template |
|
|
DHCP/BOOTP Client |
|
|
Dual Image, Dual Configuration |
|
|
CPU Monitoring |
|
|
Cable Diagnostics |
|
|
EEE |
|
|
SNTP |
|
|
System Log |
|
|
MANAGEMENT |
|
|
Centralized Management |
Omada Hardware Controller (OC300) |
|
Omada Hardware Controller (OC200) |
|
|
Omada Software Controller |
|
|
APP support |
Yes |
|
Cloud Access |
Yes (Through OC300, OC200, or Omada Software Controller) |
|
Management Features |
Web-based GUI |
|
Command Line Interface (CLI) through telnet |
|
|
SNMPv1/v2c/v3 |
|
|
SNMP Trap/Inform |
|
|
RMON (1,2,3,9 groups) |
|
|
SDM Template |
|
|
DHCP/BOOTP Client |
|
|
Dual Image, Dual Configuration |
|
|
CPU Monitoring |
|
|
Cable Diagnostics |
|
|
EEE |
|
|
SNTP |
|
|
System Log |
|
|
Others |
|
|
Certification |
CE, FCC, RoHS |
|
Package Contents |
TL-SG2210P |
|
Power Adapter |
|
|
Installation Guide |
|
|
Rubber Feet |
|
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉); |
|
Storage Temperature: -40℃~70℃ (-40℉~158℉) |
|
|
Operating Humidity: 10%~90% non-condensing |
|
|
Storage Humidity: 5%~90% non-condensing |
|
