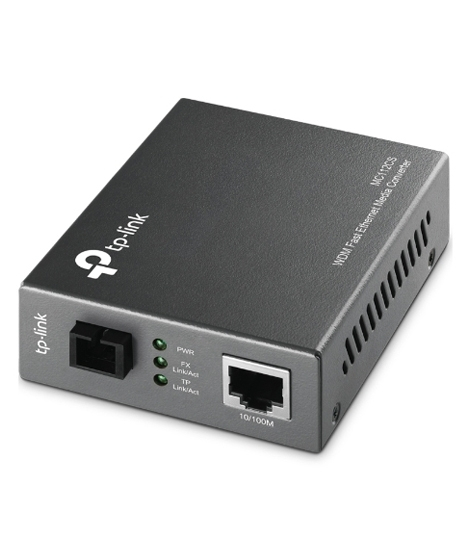

TP-Link 10/100Mbps WDM Media Converter (MC112CS)
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for TP-Link 10/100Mbps WDM Media Converter (MC112CS) with express shipping all over Pakistan.
Specification:
|
MEDIA CONVERTER & MODULE |
|
|
Standards and Protocols |
IEEE 802.3, IEEE 802.3u |
|
Basic Function |
Adopts WDM technology |
|
Half/Full-Duplex transfer mode for FX port |
|
|
minimize the loss caused by link failure timely |
|
|
Extends fiber distance up to 20km |
|
|
Ports |
1 x 100M SC/UPC port |
|
1 x 10/100M RJ45 port (Auto MDI/MDIX) |
|
|
Wave Length |
1310nm Tx/1550nm Rx |
|
WDM TX |
1310nm |
|
WDM RX |
1550nm |
|
Network Media 10BASE-T |
UTP category 3, 4, 5 cable (maximum 100m) |
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
Network Media 100BASE-T |
UTP category 5, 5e cable (maximum 100m) |
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
Network Media 100BASE-FX |
Single-mode Fiber |
|
LED Indicators |
PWR, Link/Act |
|
Dimensions (W*D*H) |
3.7 x 2.9 x 1.1 in. |
|
(95 x 73 x 27 mm) |
|
|
Power Supply |
External Power Adapter |
|
Max Power Consumption |
2.41W |
|
Safety & Emission |
FCC, CE, RoHS |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
|
Storage Temperature: -40℃~70℃ (-40℉~158℉) |
|
|
Operating Humidity: 10%~90% non-condensing |
|
|
Storage Humidity: 5%~90% non-condensing |
|
What This Product Does
The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media and vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers (12.5 miles).
