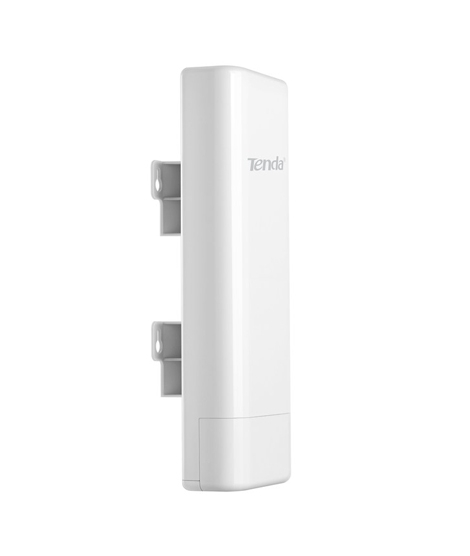

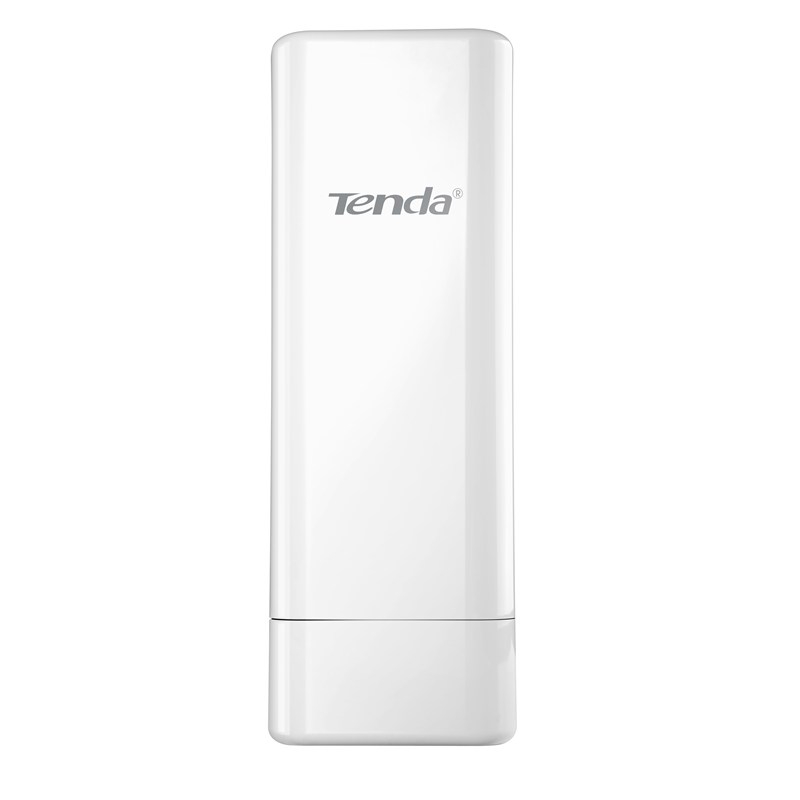

Tenda O6 Wireless 5GHz 11AC N433 Outdoor Point To Point CPE

SKU : BZK1-0001-MP
Rs. 30,000

Get free returns on eligible items
Country-wide Shipping
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Express Delivery
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).

Home
Categories
Sale
My account
My cart

About this Item

iShopping.pk brings you the best price for Tenda O6 Wireless 5GHz 11AC N433 Outdoor Point To Point CPE with express shipping all over Pakistan.



O6 5GHz 433Mbps outdoor Point to Point CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with an external power amplifier and a built-in 16dBi directional antenna to provide an efficient way to pick up and maintains a stable signal for a wireless network connection range up to 10 kilometers.

5GHz 11AC 433Mbps
O6 adopts of 11AC technology and gigabit ethernet port to boost the throughput performance on the wireless connection.

10km+ Wireless Data Transmission
O6 is specially designed for outdoor long range point to point application scenarios. Adopt of external power amplifier and 16dBi antenna to achieve 10km+ wireless data transmission range.

Bridge two device at a push of button
O6 comes with an operating mode switch, you can switch the device to work as AP mode or Station mode without login to web UI. When one works as AP mode and another works as Station(Client) mode, you can bridge two devices together at a push of Bridge/RST button.

Smart Signal Indicator LED
3 signal LED Lights represent the currently signal strength that O6 receives from peer device.It is helpful to find the right location to deploy the device and achieve a better performance.

Advanced Antenna System
O6 adopts of specific antenna array and metal reflector to deliver higher gain and optimized transmission quality.

Professional Outdoor Design
Equipped with IP64 waterproof enclouse and 6kv lightning protection capability, O6 can work in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment

Multiple Application Scenarios

Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance and data transmission.


WISP(Client+Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.

Easy to Manage
O6 also comes with a centralized management software that helps users easily manage all the devices in their network from a single computer--CPE Assistant.

Specifications:



Dimension

270*94.86*67.5mm

Frequency Range

5GHz

Maximum wireless speed

433Mbps

CPU Processor

Broadcom 800MHz

GND Terminal

1

Interface

1*GE PoE/WAN/LAN port

Mode Switch

Station: The device only work in Station mode

Off: The device work on

AP/Station/Universal Repeater/WISP/Router mode

AP: The device only work in AP mode

Button

Reset: Press 10 seconds or more to restore to default settings

Bridge: Press 3 seconds and release it to bridge uplink AP

Antenna

16dbi Directional Antenna

Antenna Beamwidth

Horizontal: 30°

Vertical: 15°

Maximum Consumption

9W

Lightning Protection

6KV

Waterproof Level

IP64

LED

LAN,LED1,LED2,LED3

Power Supply

24v 0.5A PoE Injector

Operating mode

AP/Station/Universal Repeater/WISP/Router

Standard&Protocol

IEEE 802.11ac/n/a

Wireless Speed

Enable/Disable Wireless Radio

SSID Hidden

Wireless Client isolation

Sensitivity Threshold

WMM Capable

APSD Capable

Wireless Access Control

Wireless Client list

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2

Transmit Power

Adjustable power by 1dBm

Reception Sensitivity

MCS0: -90dbm

MCS7: -72dbm

DHCP Server

DHCP Server

Clients list

VPN Pass-through

PPTP,L2TP

Ping Watchdog

Support

Speed Test

Support

Remote Web access

Support

Schedule Reboot

Support

Page Timeout

Support

Dyndns

noip, dyndns.org

Network Diagnoses

Ping, Traceroute, Signal Scan

Management Tool

Time&Date Setting

System Log

Firmware update

Backup/Restore Configuration

Username Managerment

Temperature

Operating Temperature:-20℃ ~ 55℃

Storage Temperature:-40℃ ~ 70℃

Humidity

Operating Humidity:10%~90% non-condensing

Storage Humidity:10%~90% non-condensing

Default Settings

IP Address: 192.168.2.1

Login Username:admin

Login Password:admin

Certification

FCC/CE/RoHS
