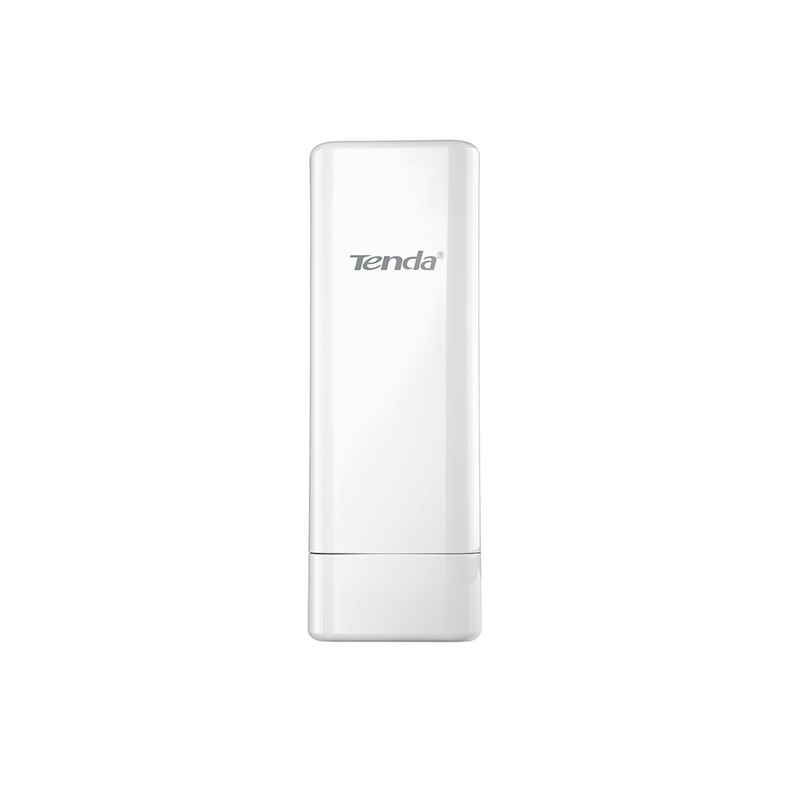

Tenda O3 Wireless 5km Point to Point Outdoor CPE
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for Tenda O6 Wireless 5GHz 11AC N433 Outdoor Point To Point CPE with express shipping all over Pakistan.
O3 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.
What it does
O3 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.
5km+ transmission Range
O3 adopts of independent power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km.
Auto-bridge For Two Device
O3 adopts of auto-bridge technology,two cpe can connect to each other when you power on them face to face. It is very easy to setup for CCTV surveillance and data.
Smart Signal Indicator LED
3 signal LED Lights represent the currently signal strength that O3 receives from peer device.It is helpful to find the right location to deploy the device and achieve a better performance.
Professional Outdoor Design
Equipped with IP64 waterproof enclouse and high quality hardware design, O3 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
Multiple Application Scenarios
Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance and data transmission.
WISP(Client+Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.
P2MP Link
Link multi AP in a network, all the associated client can communicate with each other.
Easy to Setup and Manage
O3 comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assistant.
Specifications:
|
Mode |
O3 |
|
Dimension |
270*94.86*67.5mm |
|
Deployment |
Pole Mount |
|
Application Scenarios |
WISP CPE, Data transmission and Long range video surveillance |
|
Frequency |
2.4GHz |
|
Maximum wireless speed |
150Mbps |
|
Interface |
2*10/100Mbps Ethernet Port |
|
Antenna |
12dbi |
|
Antenna Beamwidth |
Horizontal: 60° |
|
Elevation: 30° |
|
|
Reset Button |
1 |
|
GND Terminal |
1 |
|
Power Consumption |
4.3W |
|
Waterproof Level |
IP64 |
|
LED indicator |
PoE/LAN,LED1,LED2,LED3 |
|
Power Method |
12V1A Passive PoE |
|
Lightning Protection |
6000V |
|
Passive PoE power supply |
Passive power over ethenet via PoE/LAN ( 4,5pins -7,8pins) |
|
Voltage range: 11-13.8V DC |
|
|
Reception Sensitivity |
MCS0: -96dbm |
|
MCS7: -72dbm |
|
|
Operating mode |
AP/Station/WISP/P2MP/WDS Repeater/Router |
|
Standard&Protocol |
IEEE 802.11b/g/n |
|
Enable/Disable Wireless Radio |
Support |
|
SSID Hidden |
Support |
|
Wireless Client isolation |
Support |
|
SSID Isolation |
Support |
|
Client Limitation For SSID |
Support |
|
Wireless Access Control |
Support |
|
Weak Signal Client Limitation |
Support |
|
Transmit Power |
Adjustable power by 1dBm |
|
WMM Capable |
Support |
|
APSD Capable |
Support |
|
Wireless Security |
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
|
Transmission Media |
Support |
|
VLAN Tagging for SSID |
Support |
|
DHCP Server |
Support |
|
VPN Pass-through |
PPTP,L2TP |
|
Remote Web access |
Support |
|
Schedule Reboot |
Support |
|
Page Timeout |
Support |
|
Ping Watchdog |
Support |
|
Dyndns |
noip, dyndns.org |
|
Network Diagnoses |
Ping, Traceroute, Signal Scan |
|
Time&Date Setting |
Support |
|
Firmware Upgrade |
Support |
|
Backup/Restore Configuration |
Support |
|
Username Managerment |
Support |
|
Syslog |
Support |
|
Managed By Controller |
PC Software -- CPE Assistant |
|
Package Content |
1*5km Point to Point Outdoor CPE |
|
1*Power Adapter |
|
|
1*PoE Injector |
|
|
2*Plastic Staps |
|
|
1*Quick Installation Guide |
|
|
Temperature |
Operating Temperature:-30℃ ~ 60℃ |
|
Storage Temperature:-40℃ ~ 70℃ |
|
|
Humidity |
Operating Humidity:10%~90% non-condensing |
|
Storage Humidity:10%~90% non-condensing |
|
|
Default Settings |
Default login IP:192.168.2.1 |
|
Default Login Username:admin |
|
|
Default Login Password:admin |
|
|
Certification |
FCC/CE/RoHS |
