Sennheiser EW 500 BOOM G4 Wireless Plug-On Microphone
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
Sennheiser Wireless Plug-On Microphone Delivered All Over Pakistan
iShopping.pk brings you the best price for Sennheiser EW 500 BOOM G4 Wireless Plug-On Microphone with Official Warranty and express shipping all over Pakistan.
Specification:
|
Wireless Technology |
Analog UHF |
|
Included Transmitters |
1 x Plug-On |
|
Diversity |
Antenna Diversity |
|
Max Operating Range |
330' / 100.6 m (Line of Sight) |
|
Receiver Type |
Camera-Mount |
|
System |
|
|
Wireless Technology |
Analog UHF |
|
Number of RF Channel Frequencies |
3520 |
|
Included Transmitters |
1 x Plug-On |
|
Diversity |
Antenna Diversity |
|
RF Frequency Band |
470 to 558 MHz |
|
RF Bandwidth |
88 MHz |
|
Frequency Step Size |
25 kHz |
|
RF Channel Scanning |
Auto-Scan |
|
Max Operating Range |
330' / 100.6 m (Line of Sight) |
|
Max Transmitters per Band |
32 |
|
Built-In Recorder |
No |
|
Timecode Support |
No |
|
Mobile App Compatible |
No |
|
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
|
|
Encryption |
None |
|
Deviation |
±48 kHz (Peak) |
|
Modulation |
Wideband FM |
|
Receiver |
|
|
Receiver Type |
Camera-Mount |
|
Mounting Options |
Shoe-Mount (with Included Hardware) |
|
Antenna |
1 x Flexible Whip, Fixed (Top-Mount) |
|
Number of Audio Channels |
1 |
|
Audio I/O |
1 x 1/8" / 3.5 mm TRS Female Balanced Line Output (Locking) |
|
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Locking) |
|
|
Gain Range |
42 dB (6 dB Steps) |
|
Audio Output Level |
1/8" / 3.5 mm Output: |
|
+17 dBu (Balanced) |
|
|
Standalone Audio Interface Capable |
No |
|
Approximate RF Sensitivity |
1.6 µV |
|
Squelch |
Adjustable, 5 to 25 dBμV |
|
Adjacent Channel Isolation |
>65 dB |
|
Power Requirements |
Battery |
|
Battery Type |
2 x AA (Included) |
|
1 x Sennheiser Battery Pack (Not Included) |
|
|
Approx. Battery Life |
8 Hours (Alkaline) |
|
DC Input Power |
3 VDC |
|
Display & Indicators |
1 x Backlit LCD (Battery Status, Output Level, RF Level) |
|
Housing |
Metal |
|
Operating Temperature |
14 to 131°F / -10 to 55°C |
|
Dimensions |
2.5 x 3.2 x 0.9" / 63.5 x 81.3 x 22.9 mm |
|
Weight |
4.6 oz / 130 g (with Batteries) |
|
Transmitter |
|
|
Transmitter Type |
Plug-On |
|
RF Output Power |
10 / 30 / 50 mW (Switchable, at 50 Ohms) |
|
Audio I/O |
1 x XLR 3-Pin Female Unbalanced Input (Locking) |
|
Included Cable Connector |
None |
|
Phantom Power |
+48 V |
|
Muting |
Mute Switch |
|
Audio Input Level |
6 V RMS (Mic Level, Line Level) |
|
Auto-Level Control |
No |
|
Gain Range |
48 dB (6 dB Steps) |
|
Signal Processing |
None |
|
Frequency Response |
80 Hz to 18 kHz |
|
Sync Method |
IR |
|
Antenna |
1 x Internal, Fixed |
|
Power Requirements |
Battery |
|
Battery Type |
2 x AA (Included) |
|
1 x Sennheiser Battery Pack (Not Included) |
|
|
Approx. Battery Life |
8 Hours (Alkaline) |
|
Display & Indicators |
1 x Backlit LCD (Audio Level, Battery Status, Signal Strength) |
|
Housing |
Metal |
|
Operating Temperature |
14 to 131°F / -10 to 55°C |
|
Dimensions |
1.7 x 4.1 x 1.7" / 43 x 105 x 43 mm |
|
Weight |
6.9 oz / 195 g (with Batteries) |

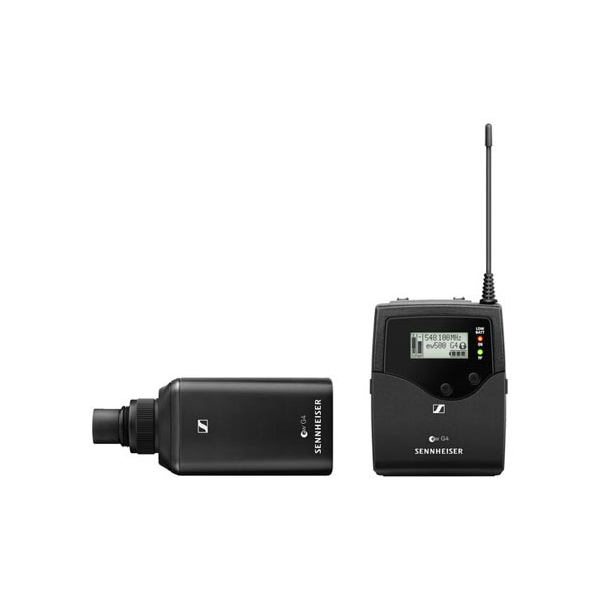

The Sennheiser EW 500 BOOM G4 is a camera-mount wireless plug-on microphone system that brings advanced features to the EW Series, expanding this industry-standard system into a fully professional, yet cost-effective solution that filmmakers, videographers, and journalists can rely on—even in challenging shooting environments like big cities.
The rugged EW 500 BOOM G4 combines a wide 88 MHz bandwidth with 3520 frequencies and an RF output level up to 50 mW for a clean transmission and broadcast-quality sound. Depending on your location, you can operate up to 32 mics in one space.The plug-on transmitter attaches to a handheld microphone of your choice for man-on-the-street interviews or to a shotgun mic for wireless booming (both types of mics are available separately). It also provides 48V phantom power, giving you the option to use a condenser microphone.
The camera-mount receiver connects to a camcorder, a DSLR/mirrorless, or a cinema camera to capture crisp-sounding speech or dialog for projects ranging from films and documentaries to wedding videos, corporate spots, and mobile journalism.
The EW 500 BOOM G4 is backward-compatible with previous evolution systems, including EW 100 models, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters.
Built for Reliable Performance in the Field
The EW 500 BOOM G4 features rugged, all-metal chassis well suited for extended use on location.
The lightweight plug-on transmitter attaches to any dynamic or condenser microphone equipped with an XLR connector. A locking ring ensures that your mic doesn’t detach at a critical moment, while a convenient switch allows you to mute your mic.
Using the included shoemount adapter, the compact receiver easily mounts on your camera without adding much weight. The included CL 500 cable provides a balanced connection from the receiver to the XLR audio input of your camcorder, cinema camera, or recording device. The CL 1 cable is for DSLR/mirrorless cameras and devices with 3.5mm inputs. A headphone output lets you monitor the quality of your sound while recording.
Both transmitter and receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level.
Advanced Controls for Flexible Use
The frequency scan function automatically searches for the cleanest frequency at your location.To get you going quickly, the transmitter and receiver synchronize via infrared interface with the simple push of a button.
10/30/50 mW switchable RF output helps overcome interference or save battery life.
The adjustable input sensitivity on the transmitter accommodates mic levels ranging from booming voices to quiet speech, and even line-level audio.
The receiver has an adjustable output range of 42 dB to match the audio input of your camera or recording device.
Proven Broadcast-Quality Sound
To take full advantage of your microphone’s dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission—delivering audio with remarkable accuracy and quality.
Additional Features
Adaptive-diversity reception for reliable transmission up to 330'
20 frequency banks, each with up to 32 factory-preset channels to prevent intermodulation
Pilot tone squelch for eliminating RF noise when transmitter is turned off
User-friendly menu operation with flexible control options
Transmitter and receiver feature 4-step battery-life indicator
Auto-Lock function avoids accidental changing of settings
RF Mute function
8 hours of battery life
Powered via AA batteries or rechargeable BA 2015 Accupack battery (available separately)
Side contacts on the receiver for recharging the Accupack without removing it from either transmitter or receiver—requires the L 2015 quick-charging unit (available separately)
Unlike digital wireless systems, the SKP 500 G4 transmitter can transmit to an unlimited number of EW series receivers
Wide range of accessories adapts the system to a variety of applications
EW 100 G4 vs EW 500 G4 Systems at a Glance
Bandwidth: Up to 46 MHz vs up to 88 MHz
UHF Frequencies: 1680 vs up to 3520
RF Output Power: Fixed 30 mW vs adjustable 10/30/50 mW
Mics at Once: Up to 12 mics vs up to 32 mics
Included Lavalier Mic: ME 2-II omni or ME 4 cardioid vs professional MKE 2 omni
Headphone Output: No vs yes
Audio Output: Unbalanced vs balanced
Plug-on Transmitter: No phantom vs +48V phantom power
