Sennheiser EW 135P G4 Wireless Omni Cardioid Handheld Microphone
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
Sennheiser WirelessCardioid Handheld Microphone Delivered All Over Pakistan
iShopping.pk brings you the best price for Sennheiser EW 135P G4 Wireless Omni Cardioid Handheld Microphone with Official Warranty and express shipping all over Pakistan.
Specification:
|
Wireless Technology |
Analog UHF |
|
Included Transmitters |
1 x Bodypack with Microphone |
|
Diversity |
Antenna Diversity |
|
Max Operating Range |
330' / 100.6 m (Line of Sight) |
|
Receiver Type |
Camera-Mount |
|
Microphone Type |
Handheld Capsule |
|
Polar Pattern |
Cardioid |
|
System |
|
|
Wireless Technology |
Analog UHF |
|
Number of RF Channel Frequencies |
1680 |
|
Included Transmitters |
1 x Bodypack with Microphone |
|
Diversity |
Antenna Diversity |
|
RF Frequency Band |
A: 516 to 558 MHz |
|
RF Bandwidth |
42 MHz |
|
Frequency Step Size |
25 kHz |
|
Max Operating Range |
330' / 100.6 m (Line of Sight) |
|
Max Transmitters per Band |
12 |
|
Deviation |
48 kHz (Peak) |
|
Modulation |
Wideband FM |
|
Receiver |
|
|
Receiver Type |
Camera-Mount |
|
Mounting Options |
Shoe-Mount (with Included Hardware) |
|
Antenna |
1 x Flexible Whip, Fixed |
|
Number of Audio Channels |
1 |
|
Audio I/O |
1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Locking) |
|
Gain Range |
42 dB (6 dB Steps) |
|
Audio Output Level |
+12 dBu |
|
Squelch |
5 to 25 dBμV |
|
Adjacent Channel Isolation |
>65 dB |
|
Power Requirements |
Battery |
|
Battery Type |
2 x AA (Included) |
|
1 x Sennheiser Accupack (Not Included) |
|
|
Approx. Battery Life |
8 Hours (Alkaline) |
|
Display & Indicators |
1 x Backlit LCD (Battery Status, Output Level, RF Level) |
|
Housing |
Metal |
|
Operating Temperature |
14 to 131°F / -10 to 55°C |
|
Dimensions |
2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm |
|
Weight |
5.6 oz / 160 g (with Batteries) |
|
Transmitter |
|
|
Transmitter Type |
Handheld |
|
RF Output Power |
30 mW |
|
Audio I/O |
None |
|
Muting |
None |
|
Audio Input Level |
3 V RMS (Max) |
|
Gain Range |
48 dB (6 dB Steps) |
|
Frequency Response |
80 Hz to 18 kHz (Mic) |
|
80 Hz to 18 kHz (Line) |
|
|
Sync Method |
IR |
|
Antenna |
1 x Internal |
|
Power Requirements |
Battery |
|
Battery Type |
2 x AA (Included) |
|
1 x Sennheiser Accupack (Not Included) |
|
|
Approx. Battery Life |
8 Hours (Alkaline) |
|
Display & Indicators |
1 x Backlit LCD (Audio Level, Battery Status, Signal Strength) |
|
Housing |
Metal |
|
Dimensions |
2 x 10.4" / 50 x 265 mm |
|
Weight |
15.9 oz / 450 g (with Batteries) |
|
Microphone |
|
|
Microphone Type |
Handheld Capsule |
|
Sound Field |
Mono |
|
Capsule |
Dynamic |
|
Polar Pattern |
Cardioid |
|
Maximum SPL |
154 dB SPL Peak |
|
Sensitivity |
2.1 mV/Pa |
The Sennheiser EW 135P G4 camera-mount wireless handheld microphone system features the proven combination of reliability, flexible control, and broadcast-quality sound that has made the EW Series an industry standard for videographers, journalists, and content creators all over the world.
The EW 135P G4 gives you the tools to adapt and meet the wireless challenges that inevitably arise on set. The frequency scan function automatically searches for the cleanest frequency at your location, while the transmitter offers an interchangeable capsule design, allowing you to swap mic capsules with different polar patterns to suit your application.

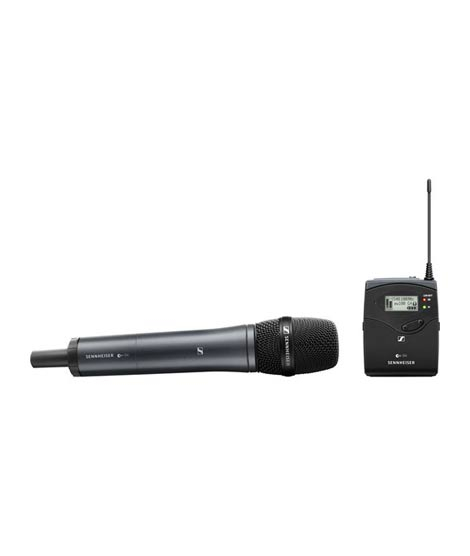

The system includes a camera-mount receiver and an updated, lightweight handheld transmitter equipped with an MMD 835 cardioid capsule—ideal in situations where you don't have time to position a lavalier mic or you need to quickly pass the mic between several people. The receiver connects to a camcorder or a DSLR/mirrorless camera to capture crisp-sounding speech or dialog for projects ranging from wedding and corporate videos to red-carpet and man-on-the-street interviews in noisy environments.
The EW 135P G4 is backward-compatible with previous evolution systems, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 500 systems.
Built for Dependable Performance in the Field
The EW 135P G4 features all-metal construction and a lightweight handheld transmitter, well suited for extended use on location.
Using the included shoemount adapter, the compact receiver easily mounts on your camera without adding much weight. The included cables allow you to connect the receiver to the 3.5mm or XLR audio input of any DSLR/mirrorless, camcorder, or recording device.
Both transmitter and receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level. To get you going quickly, they synchronize via infrared interface with the simple push of a button.
Proven Broadcast-Quality Sound
The EW 135P G4 ships with an MMD 835 dynamic mic capsule, which delivers a natural sound optimized for speech intelligibility. Its directional cardioid polar pattern helps to reject unwanted background sound, making it ideal in loud environments such as trade-show floors, busy public areas, or sporting events.
For outdoor interviews or situations when you're moving the mic quickly between speakers, you can swap out the included 835 cardioid capsule for the MMD 42 capsule (available separately), which offers improved wind protection, less handling noise, and a more forgiving omnidirectional pickup pattern.
To take full advantage of the microphone's dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission, and delivering audio with remarkable accuracy and quality.
Additional Features
Adaptive-diversity reception for reliable transmission up to 330'
42 MHz bandwidth with 1680 tunable UHF frequencies for clean reception
20 frequency banks, each with up to 12 factory-preset channels to prevent intermodulation
Pilot tone squelch for eliminating RF noise when transmitter is turned off
Receiver with adjustable 48 dB of output level to match the audio input of your camera or recording device
User-friendly menu operation with flexible control options
Transmitter and receiver feature 4-step battery-life indicator
Auto-Lock function avoids accidental changing of settings
RF Mute function
8 hours of battery life
Powered via AA batteries or rechargeable BA 2015 Accupack batteries (available separately)
Side contacts for recharging the receiver's Accupack without removing it—requires the L 2015 quick-charging unit (available separately)
Operate up to 12 wireless mics at once on set
Unlike digital wireless systems, the SKM 100 G4 transmitter can transmit to an unlimited number of EW Series receivers
Wide range of accessories adapts the system to a variety of applications
EW 100 G4 vs EW 500 G4 Systems at a Glance
Bandwidth: Up to 46 MHz vs up to 88 MHz
UHF Frequencies: 1680 vs up to 3520
RF Output Power: Fixed 30 mW vs adjustable 10/30/50 mW
Mics at Once: Up to 12 mics vs up to 32 mics
Included Lavalier Mic: ME 2-II omni or ME 4 cardioid vs professional MKE 2 omni
Headphone Output: No vs yes
Audio Output: Unbalanced vs balanced
Plug-On Transmitter: No phantom vs +48V phantom powe
