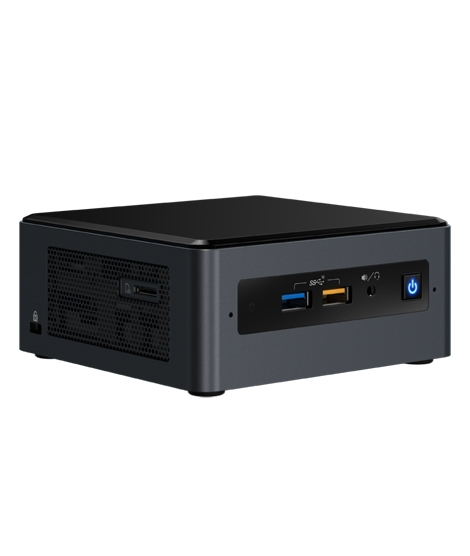

Intel Nuc Kit NUC8i3BEH

Product Collection

Intel® NUC Kit with 8th Generation Intel® Core™ Processors

Code Name

Products formerly BEAN CANYON

Status

Launched

Launch Date

Q3'18

Board Form Factor

UCFF (4" x 4")

Socket

Soldered-down BGA

Internal Drive Form Factor

M.2 and 2.5" Drive

# of Internal Drives Supported

2

Lithography

14 nm

TDP

28 W

DC Input Voltage Supported

12-19 VDC

Processor Included

Intel® Core™ i3-8109U Processor (4M Cache, up to 3.60 GHz)

Supplemental Information

Embedded Options Available

No

Datasheet

View now

Description

Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones

Memory & Storage

Max Memory Size (dependent on memory type)

32 GB

Memory Types

DDR4-2400 1.2V SO-DIMM

Max # of Memory Channels

2

Max Memory Bandwidth

38.4 GB/s

Max # of DIMMs

2

ECC Memory Supported

‡No

Processor Graphics

Integrated Graphics

‡Yes

Graphics Output

HDMI 2.0a; USB-C (DP1.2)

# of Displays Supported

‡3

Expansion Options

PCI Express RevisionGen

3

PCI Express Configurations

‡M.2 slot with PCIe X4 lanes

Removable Memory Card Slotmicro

SDXC with UHS-I support

M.2 Card Slot (storage)

22x42/80

I/O Specifications

# of USB Ports

6

USB Configuration

2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers

USB Revision

2.0, 3.1 Gen2

USB 2.0 Configuration (External + Internal)

0 + 2

USB 3.0 Configuration (External + Internal)

2B 2F + 0

Total # of SATA Ports

2

Max # of SATA 6.0 Gb/s Ports

2

RAID Configuration

2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)

Audio (back channel + front channel)

7.1 digital (HDMI mDP); L+R mic (F)

Integrated LAN

10/100/1000

Integrated Wireless

‡Intel® Wireless-AC 9560 + Bluetooth 5.0

Integrated Bluetooth

Yes

Consumer Infrared Rx Sensor

Yes

Additional Headers

CEC, 2x USB2.0, FRONT_PANEL

# of Thunderbolt™ 3 Ports

1

Package Specifications

Low Halogen Options Available

No

Advanced Technologies

Intel® Optane™ Memory Supported

 ‡Yes

Intel® Virtualization Technology for Directed I/O (VT-d)

‡Yes

Intel® vPro™ Platform Eligibility

 ‡No

TPM

No

Intel® HD Audio Technology

Yes

Intel® Rapid Storage Technology

Yes

Intel® Virtualization Technology (VT-x)

 ‡Yes

Intel® Platform Trust Technology (Intel® PTT)

Yes
