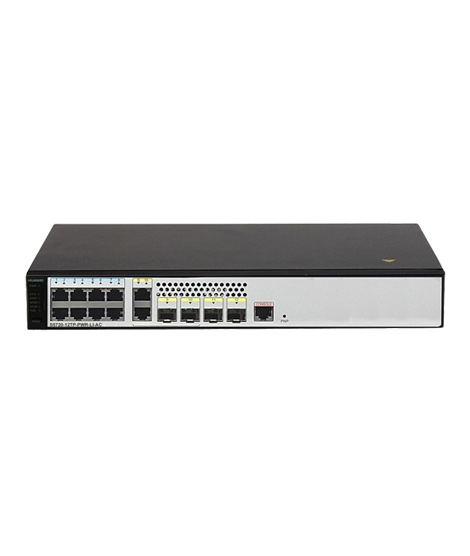

Huawei 8-Port 2 SFP Gigabit 2 Dual Purpose Ports Ethernet Switch (S5720-12TP-LI-AC)
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
Huawei 8-Port Ethernet Switch Delivered all over Pakistan
iShopping.pk brings you the best price for Huawei 8-Port 2 SFP Gigabit 2 Dual Purpose Ports Ethernet Switch (S5720-12TP-LI-AC) with express shipping all over Pakistan.
Details:
The S5720-LI is a next-generation energy-saving gigabit Ethernet switch that provides flexible GE access ports and 10GE uplink ports. Building on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), the S5720S-LI supports intelligent stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution. In addition, Huawei customizes specialized models to meet customer requirements to suit special scenarios.The models with front power sockets can be installed in the 300 mm deep cabinet. They can be maintained through the front panel, saving space in small equipment rooms. The models that use a fan-free design reduce power consumption and noise.
• Huawei S5720-12TP-LI-AC switch with 8-ports 1000BASE-T, 4-ports GE SFP, 2-ports 1000BASE-T combo
• With 1 AC power fixed
• No extension slots
• Forwarding perfomance: 22.5Mpps
• Switching capacity: 336Gbps
• 16K MAC address entries
• Non-POE
Specifications:
|
Fixed port |
8 10/100/1000Base-T Ethernet ports, 4 GE SFP ports, 2 of which are dual-purpose 10/100/1000Base-T or SFP ports |
|
Forwarding performance |
22.5 Mpps |
|
Extended slot |
NA |
|
MAC address table |
IEEE 802.1d |
|
16K MAC address entries |
|
|
MAC address learning and aging |
|
|
Static, dynamic, and blackhole MAC address entries |
|
|
Packet filtering based on source MAC addresses |
|
|
VLAN |
4K VLANs |
|
Guest VLAN and voice VLAN |
|
|
GVRP |
|
|
MUX VLAN |
|
|
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports |
|
|
1:1 and N:1 VLAN Mapping |
|
|
Wireless AC |
AP access control, AP domain management, and AP configuration template |
|
management |
|
|
Radio management, unified static configuration, and dynamic centralized management |
|
|
WLAN basic services, QoS, security, and user management |
|
|
CAPWAP, Tag/terminal location, and spectrum analysis |
|
|
Jumbo frame |
10K |
|
IP routing |
Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, |
|
routing policy |
|
|
IPv6 features |
Neighbor Discovery (ND) |
|
Path maximum transmission unit (PMTU) |
|
|
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet |
|
|
6 to4 tunnel, ISATAP tunnel, and manually configured tunnel |
|
|
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports |
|
|
or protocol types |
|
|
Multicast Listener Discovery (MLD) v1/v2 snooping |
|
|
Multicast forwarding |
IGMP v1/v2/v3 snooping and IGMP fast leave |
|
Multicast forwarding in a VLAN and multicast replication between VLANs |
|
|
Multicast load balancing among member ports of a trunk |
|
|
Controllable multicast |
|
|
Port-based multicast traffic statistics collection |
|
|
IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent |
|
|
Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM) |
|
|
Multicast Source Discovery Protocol (MSDP) |
|
|
QoS/ACL |
Rate limitation in the inbound and outbound directions of a port |
|
Packet redirection |
|
|
Broadcast storm control |
|
|
Port-based traffic policing and two-rate and three-color CAR |
|
|
Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms |
|
|
Weighted random early detection (WRED) |
|
|
Re-marking of the 802.1p priority and DSCP fields of packets |
|
|
Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source |
|
|
MAC address, destination MAC address, source IP address, destination IP address, |
|
|
TCP/UDP source/destination port number, protocol number, or VLAN |
|
|
Queue-based rate limitation and shaping on ports |
|
|
HQoS |
|
|
Security features |
Hierarchical user management and password protection |
|
DoS attack defense, ARP attack defense, and ICMP attack defense |
|
|
Binding of the IP address, MAC address, interface number, and VLAN ID of a user |
|
|
Port isolation, port security, and sticky MAC |
|
|
MAC Forced Forwarding (MFF) |
|
|
Blackhole MAC address entries |
|
|
Limit on the number of learned MAC addresses |
|
|
IEEE 802.1x authentication and the limit on the number of users on an interface |
|
|
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC |
|
|
SSH v2.0 |
|
|
Hypertext Transfer Protocol Secure (HTTPS) |
|
|
CPU defense; Blacklist and whitelist; MACSec ready |
|
|
Reliability |
RRPP ring topology and RRPP multi-instance |
|
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level |
|
|
protection switchover |
|
|
SEP |
|
|
G.8032 Ethernet Ring Protection Switching (ERPS) |
|
|
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
|
|
BPDU protection, root protection, and loop protection |
|
|
Super Virtual Fabric (SVF) |
Working as the parent node to vertically virtualize downlink switches and APs as one |
|
device for management |
|
|
Supports a two-layer client architecture |
|
|
Management and |
Virtual cable test, SNMP v1/v2c/v3, RMON |
|
Maintenance |
Network management system (NMS) and Web management |
|
System logs and multi-level alarms |
|
|
802.3az EEE |
|
|
GVRP |
|
|
Dying Gasp upon power-off |
|
|
Interoperability |
VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST |
|
Link-type Negotiation Protocol (LNP), similar with DTP |
|
|
VLAN Central Management Protocol (VCMP), similar with VTP |
|
|
Operating environment |
Operating temperature: 0-1800 m altitude: 0-45℃ |
|
1800-5000m altitude: The operating temperature reduces by 1℃ every time the |
|
|
altitude increases by 220m. |
|
|
Relative humidity: 5% to 95% (noncondensing) |
|
|
Input voltage |
AC: |
|
Rated voltage range: 100 V to 240 V AC, 50/60 Hz |
|
|
Maximum voltage range: 90 V to 264 V AC, 50/60 Hz |
|
|
DC:Rated voltage range: –48 V to –60 V, DC |
|
|
Maximum voltage range: –36 V to –72 V, DC |
|
|
Dimensions (mm) |
442 (W) x 420 (D)x 43.6 (H) |
|
Typical power consumption |
21.2W |
