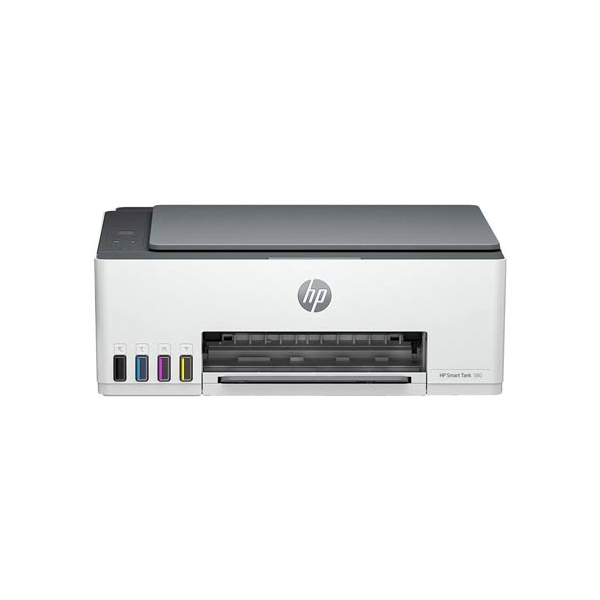

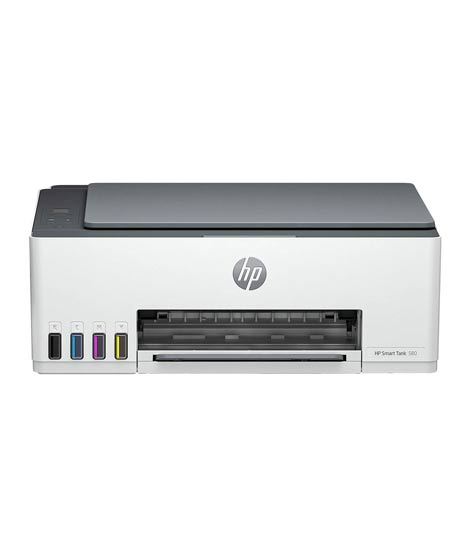

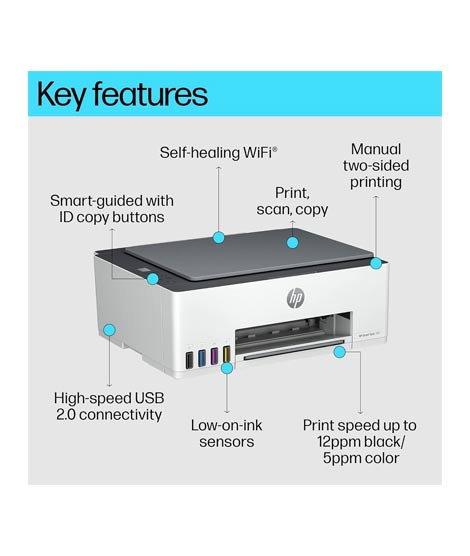

HP All-in-One Smart Tank Printer (580)

Model name

HP Smart Tank 580 All-in-One Printer

Product number

5D1B4A

What's included and accessories

Accessories

None

Connectivity

Ports

1 Hi-Speed USB 2.0 (device); 1 Bluetooth Low Energy; 1 Wi-Fi 802.11b/g/n; 1 Wi-Fi Direct

Wireless capability

Yes, built-in Wi-Fi 2.4G, Wi-Fi Direct, Bluetooth Low Energy

Storage device and direct print support

Wireless Direct Printing

Copy

Copier settings

Number of Copies, Resize, Quality, Lighter/Darker, Papersize, Papertype, ID Copy, Enhancement

Color copy capability

Yes

Maximum number of copies

Up to 99 copies

Copy reduce / enlarge settings

Via HP Smart app

Copy resolution

Up to 1200 dpi

Environmental

Acoustic power emissions (active, printing)

6.4 B(A)

Acoustic pressure emissions

56.8 dBA

Recommended operating humidity range

20 to 80% RH

Non-Operating Humidity Range

5 to 90% RH (non-condensing)

Recommended operating temperature range (Celsius)

15 to 30°C

Recommended operating temperature range (Fahrenheit)

59 to 86°F

Storage temperature range (Celsius)

-40 to 60°C

Storage temperature range (Fahrenheit)

-40 to 140°F

Environmental specifications

45% post-consumer recycled plastic

Memory

Memory

64 MB Integrated DDR1

Maximum Memory

64MB

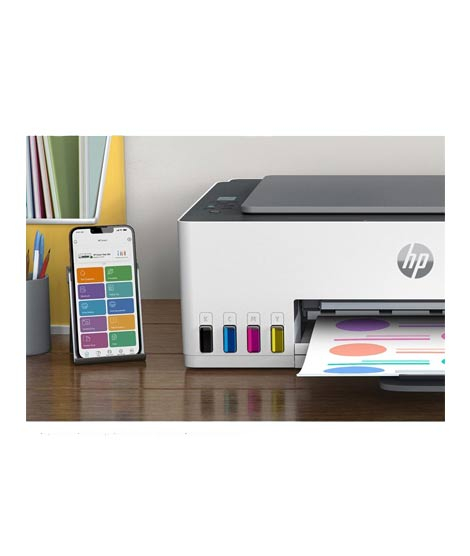

Mobile printing capability

Mobile printing services

HP Smart app; Apple AirPrint; Mopria Print Service; HP Print Service Plugin (Android printing); Wi-Fi Direct Printing

Paper handling

Input capacity

Up to 100 sheets

Standard input capacity (cards)

Up to 30 cards

Standard input capacity (envelopes)

Up to 10

Output capacity

Up to 30 sheets

Media sizes supported (metric)

A4; B5; A6; DL envelope, legal

Media sizes supported (U.S. standard)

Letter; legal; 4 x 6 in; 5 x 7 in; 8 x 10 in; No. 10 envelopes

Media sizes, custom (metric)

88.9 x 127 to 215.9 x 355.6 mm

Media sizes, custom (U.S. standard)

3.5 x 5 in to 8.5 x 14 in

Media types

Plain paper, Matte Brochure Papers, Glossy Brochure Papers, Photo papers, Envelopes, Other specialty inkjet papers

Media weight supported (metric)

Plain paper: 60 to 90 g/m²; Envelopes: 75 to 90 g/m²; Cards: up to 200 g/m²; Photo paper: up to 300 g/m²

Media weight supported (U.S. standard)

20 lb

Borderless printing

Yes (up to 8.5 x 11 in, 210 x 297 mm)

Paper handling - duplexer

Media sizes, duplex (U.S. standard)

Letter; Executive

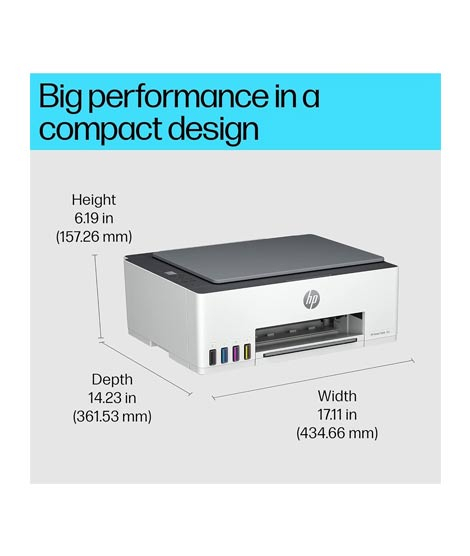

Physical dimensions

Maximum dimensions (W x D x H, metric)

434.66 x 580.65 x 259.37 mm

Maximum dimensions (W x D x H, U.S. standard)

17.11 x 22.86 x 10.21 in

Weight (metric)

5.03 kg

Weight (U.S. standard)

11.09 lb

Power

Energy savings feature technology

HP Auto-Off Technology

Power supply type

Internal built in

Power supply

Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz). High voltage: Input voltage 200 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3Hz)

Power consumption

0.109 watts (manual-Off), 3.023 watts (ready), 1.096 watt (sleep)

Print cartridges

Number of print cartridges

4 (1 each black bottle, set of 3 color bottles)

Replacement cartridges

North America: HP GT53 90-ml Black Original Ink Bottle 1VV22AA; HP GT53XL 135-ml Black Original Ink Bottle 1VV21AA; HP GT52 Cyan Original Ink Bottle M0H54AA; HP GT52 Magenta Original Ink Bottle M0H55AA; HP GT52 Yellow Original Ink Bottle M0H56AA; Europe Middle East and Africa: HP GT53XL 135-ml Black Original Ink Bottle 1VV21AE; HP GT52 Cyan Original Ink Bottle M0H54AE; HP GT52 Magenta Original Ink Bottle M0H55AE; HP GT52 Yellow Original Ink Bottle M0H56AE; Asia Pacific: HP GT53 90-ml Black Original Ink Bottle 1VV22AA; HP GT53XL 135-ml Black Original Ink Bottle 1VV21AA; HP GT52 Cyan Original Ink Bottle M0H54AA; HP GT52 Magenta Original Ink Bottle M0H55AA; HP GT52 Yellow Original Ink Bottle M0H56AA; Latin America: HP GT53 90-ml Black Original Ink Bottle 1VV22AL; HP GT52 Cyan Original Ink Bottle M0H54AL; HP GT52 Magenta Original Ink Bottle M0H55AL; HP GT52 Yellow Original Ink Bottle M0H56AL; HP GT52 3-pack Cyan/Magenta/Yellow Original Ink Bottles X4E44AL. For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies .

Replacement cartridges footnote

Black and composite color average per bottle (cyan/magenta/yellow) results based on HP methodology from the simulation of continuous printing of ISO/IEC 24712 test pages. Not based on ISO/IEC 24711 test process. An additional black ink bottle is required to print 8,000 color test pages. Actual yield varies based on content of printed pages and other factors. Some ink from included bottles is used to start up the printer. For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies.

Printing specifications

Print technology

HP Thermal Inkjet

Duplex printing

Manual (driver support provided)

Print speed black (ISO)

Up to 12 ppm

Print speed color (ISO)

Up to 5 ppm

Print resolution (best)

Up to 1200 x 1200 rendered dpi

Maximum print area (metric)

216 x 355 mm

Monthly duty cycle

Up to 3,000 pages

Print languages

HP PCL 3 GUI; HP PCLm (HP Apps/UPD); URF (AirPrint)

Regulatory specifications

Regulatory model number

SNPRC-2201-01

Safety

IEC 60950-1 & IEC62368-1 compliant; EU RED and EN 60950-1 & EN 62368-1 compliant; Singapore Safety; China CCC; Taiwan BSMI

Electromagnetic compatibility

EN 55032:2015+A11:2020 Class B; EN 55024:2010 +A1:2015; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-2:2014; EN 61000-3-3:2013 +A1:2019; EN 301 489-1 V2.2.3; EN 301 489-17 V3.2.4

Telecom compliance (fax capability)

EN 300 328 V2.2.2; EN 301 893 V2.1.1; EN 300 440 V2.1.1

Scan

Scan technology

Contact Image Sensor (CIS)

Scan resolution, hardware

Up to 1200 x 1200 dpi

Levels of grayscale

256

Bit depth

24-bit

Scanning options (ADF)

Not Applicable

Maximum flatbed scan size (metric)

216 x 297 mm

Maximum flatbed scan size (U.S. standard)

8.5 x 11.69 in

Twain version

Version 2.4

Security

Security management

No

System requirements

Minimum system requirements for Windows

Microsoft® Windows® 11, 10, 7 SP1: 32-bit or 64-bit, Internet connection, Microsoft® Internet Explorer or Edge.

Recommended system requirements for Windows

Microsoft® Windows® 11, 10, 7 SP1: 32-bit or 64-bit, Internet connection, Microsoft® Internet Explorer or Edge.

Minimum System Requirements for Macintosh

Apple® macOS v10.15 Catalina, macOS v11 Big Sur, macOS v12 Monterey; 2 GB HD; Internet required

Recommended Macintosh system requirements

Apple® macOS v10.15 Catalina, macOS v11 Big Sur, macOS v12 Monterey; 2 GB HD; Internet required

Operating system (supported note)

Microsoft Windows 11, 10, 7 SP1: 32-bit or 64-bit; macOS v10.15 Catalina, macOS v11 Big Sur, macOS v12 Monterey;
