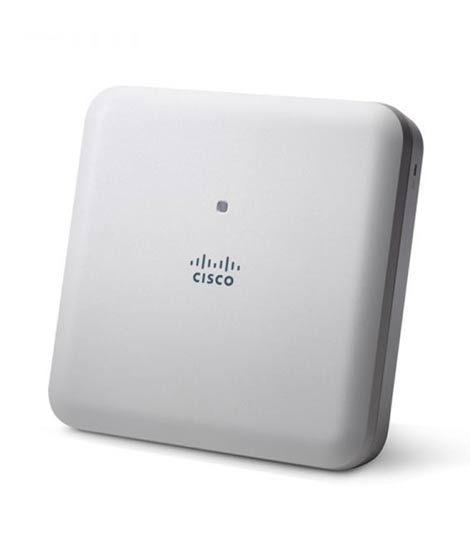

Cisco Aironet Wireless Access Point (AIR-AP1832I-E-K9)
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
Cisco Wireless Access Point Delivered All Over Pakistan
iShopping.pk brings you the best price for Cisco Aironet Wireless Access Point (AIR-AP1832I-E-K9) with express shipping all over Pakistan.
Details:
AIR-AP1832I-E-K9 is one of the Cisco Aironet 1830 Series Access Points. Cisco 1830 AP series is ideal for small and medium-sized networks. This series supports the latest Wi-Fi standard, the 802.11ac Wave 2 standard. The 1830 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support. The model AIR-AP1832I-E-K9 provides E Regulatory Domain and internal antennas.
Specification:
|
Description |
802.11ac Wave 2 AP, 3x3:2, Internal Antenna, E Regulatory Domain |
|
Software |
Cisco Unified Wireless Network Software Release with AireOS wireless controllers: |
|
8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points |
|
|
Deployment modes |
Centralized, standalone, sniffer, Cisco FlexConnect™, monitor, OfficeExtend, mesh |
|
Supported wireless LAN controllers |
Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller |
|
Cisco Mobility Express |
|
|
802.11n version 2.0 (and related) capabilities |
3x3 MIMO with two spatial streams |
|
Maximal ratio combining (MRC) |
|
|
20- and 40-MHz channels |
|
|
PHY data rates up to 300 Mbps (40 MHz with 5 GHz) |
|
|
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) |
|
|
802.11 dynamic frequency selection (DFS) |
|
|
Cyclic shift diversity (CSD) support |
|
|
802.11ac Wave 1 and 2 capabilities |
3x3 MIMO with two spatial streams, single-user or multiuser MIMO |
|
MRC |
|
|
802.11ac beamforming (transmit beamforming) |
|
|
20-, 40-, and 80-MHz channels |
|
|
PHY data rates up to 867 Mbps (80 MHz in 5 GHz) |
|
|
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) |
|
|
802.11 DFS |
|
|
CSD support |
|
|
Regulatory Domain |
E (E regulatory domain): |
|
- 2.412 to 2.472 GHz; 13 channels |
|
|
- 5.180 to 5.320 GHz; 8 channels |
|
|
- 500 to 5.700 GHz; 8 channels |
|
|
Integrated antenna |
2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360° |
|
5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360° |
|
|
Interfaces |
1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) |
|
Management console port (RJ-45) |
|
|
USB 2.0 (enabled via future software) |
|
|
Indicators |
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
|
Dimensions |
Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
|
Environmental |
Cisco Aironet 1830i |
|
Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) |
|
|
Nonoperating (storage) altitude test: 25˚C, 15,000 ft. |
|
|
Operating temperature: 32° to 104°F (0° to 40°C) |
|
|
Operating humidity: 10% to 90% (noncondensing) |
|
|
Operating altitude test: 40˚C, 9843 ft. |
|
|
System memory |
1 GB DRAM |
|
256 MB flash |
|
|
Input power requirements |
AP1830: 44 to 57 VDC |
|
Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz |
|
|
Power draw |
15.4W |
|
Note: When deployed using a PoE specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable. |
|
|
Powering options |
802.3af/802.3at |
|
Enhanced PoE |
|
|
Cisco local power supply, AIR-PWR-C= |
|
|
Cisco power injector, AIR-PWRINJ5= (Note:This injector supports 802.3af only), AIR-PWRINJ6= |
|
|
Note: If 802.3af PoE is the source of power, the USB port is disabled. |
