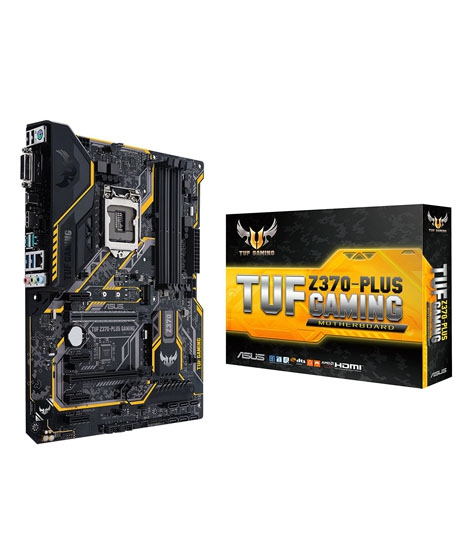

Asus TUF Z370-Plus Gaming 8th Generation ATX Motherboard
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for Asus TUF Z370-Plus Gaming 8th Generation ATX Motherboard with 3 years official warranty and express shipping all over Pakistan.
Specification:
|
CPU |
Intel® Socket 1151 for 8th Generation Core™ Processors |
|
Supports Intel® 14 nm CPU |
|
|
Supports Intel® Turbo Boost Technology 2.0 |
|
|
* Refer to www.asus.com for CPU support list |
|
|
Chipset |
Intel® Z370 |
|
Memory |
Dual Channel Memory Architecture |
|
Supports Intel® Extreme Memory Profile (XMP) |
|
|
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
|
|
* The maximum memory frequency supported varies by processor. |
|
|
Graphic |
Integrated Graphics Processor- Intel® HD Graphics support |
|
Multi-VGA output support : HDMI/DVI-D ports |
|
|
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz |
|
|
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
|
|
Maximum shared memory of 1024 MB |
|
|
Multi-GPU Support |
Supports AMD CrossFireX™ Technology |
|
Expansion Slots |
1 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) * |
|
1 x PCIe 3.0/2.0 x16 (max at x4 mode) |
|
|
4 x PCIe 3.0/2.0 x1 |
|
|
*For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings. |
|
|
Storage |
Intel® Z370 Chipset : |
|
2 x M.2 Socket 3*1, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) |
|
|
6 x SATA 6Gb/s port(s), gray |
|
|
Support Raid 0, 1, 5, 10 |
|
|
Intel® Optane™ Memory Ready |
|
|
LAN |
Intel® I219V, 1 x Gigabit LAN Controller(s) |
|
ASUS Turbo LAN Utility |
|
|
TUF LANGuard |
|
|
Audio |
Realtek® ALC887 8-Channel High Definition Audio CODEC |
|
- Supports : Jack-detection, Front Panel Jack-retasking |
|
|
Audio Feature : |
- Exclusive DTS Custom for GAMING Headsets. |
|
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference |
|
|
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals |
|
|
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
|
|
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
|
|
USB Ports |
ASMedia® USB 3.1 Gen 2 controller : |
|
2 x USB 3.1 Gen 2 port(s) (2 at back panel, +teal blue, Type-A) |
|
|
Intel® Z370 Chipset : |
1 x USB 5Gb/s port(s) port(s) |
|
Intel® Z370 Chipset : |
6 x USB 3.1 Gen 1 port(s) (2 at back panel, +blue) |
|
Intel® Z370 Chipset : |
6 x USB 2.0 port(s) (2 at back panel, ) |
|
Special Features |
|
|
ASUS TUF PROTECTION |
- ASUS SafeSlot: Protect your graphics card Investment |
|
- ASUS ESD Guard: Enhanced ESD protection |
|
|
- ASUS Overvoltage Protection: World-class circuit-protecting power design |
|
|
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! |
|
|
- ASUS DIGI+ VRM: 6 Phase digital power design |
|
|
ASUS EPU : |
- EPU |
|
TUF ENGINE! Power Design : |
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard) |
|
AURA : |
- Aura Lighting Control |
|
- Aura RGB Strip Headers |
|
|
ASUS Exclusive Features : |
|
|
- AI Suite 3 |
|
|
- Ai Charger |
|
|
ASUS Quiet Thermal Solution : |
- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution |
|
- ASUS Fan Xpert 4 Core |
|
|
ASUS EZ DIY : |
- ASUS O.C. Tuner |
|
- ASUS CrashFree BIOS 3 |
|
|
- ASUS EZ Flash 3 |
|
|
- ASUS UEFI BIOS EZ Mode |
|
|
ASUS Q-Design : |
- ASUS Q-Slot |
|
- ASUS Q-DIMM |
|
|
Overclocking Protection : |
- ASUS C.P.R.(CPU Parameter Recall) |
|
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |
|
|
Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) |
|
1 x DVI-D |
|
|
1 x HDMI |
|
|
1 x LAN (RJ45) port(s) |
|
|
1 x 5Gb/s port(s) USB Type-CTM ( support 3A power output ) |
|
|
2 x USB 3.1 Gen 2 (teal blue) |
|
|
2 x USB 3.1 Gen 1 (blue) Type-A |
|
|
2 x USB 2.0 |
|
|
3 x Audio jack(s) |
|
|
Internal I/O Ports |
1 x RGB Header(s) |
|
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) |
|
|
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|
|
2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) |
|
|
6 x SATA 6Gb/s connector(s) |
|
|
1 x CPU Fan connector(s) (1 x 4 -pin) |
|
|
2 x Chassis Fan connector(s) (2 x 4 -pin) |
|
|
1 x S/PDIF out header(s) |
|
|
1 x 24-pin EATX Power connector(s) |
|
|
1 x 8-pin ATX 12V Power connector(s) |
|
|
1 x Front panel audio connector(s) (AAFP) |
|
|
1 x Clear CMOS jumper(s) |
|
|
1 x System panel connector |
|
|
1 x W_Pump+ Header |
|
|
1 x AIO PUMP Header |
|
|
Accessories |
User's manual |
|
I/O Shield |
|
|
2 x SATA 6Gb/s cable(s) |
|
|
1 x M.2 Screw Package |
|
|
1 x TUF Gaming Sticker |
|
|
1 x TUF Certification card(s) |
|
|
1 x SCD |
|
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
|
Manageability |
WfM 2.0, DMI 3.0, WOL by PME, PXE |
|
Support Disc |
Drivers |
|
ASUS Utilities |
|
|
ASUS EZ Update |
|
|
Anti-virus software (OEM version) |
|
|
Operating System |
Windows® 10 64-bit |
|
Form Factor |
ATX Form Factor |
|
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Features:
Intel® LGA 1151 ATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 4000MHz support, 32Gbps M.2, Intel Optane memory ready, and USB 3.1 Gen 2.
• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
• Exclusive DTS Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
• TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
• TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
• Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics
• Onboard M.2 heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.
• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.
Arm Your Battlestation
TUF Gaming motherboards are built to survive and thrive on every battlefield. Infused with the military spirit of The Ultimate Force (TUF) and styled to strike fear into the hearts of every enemy, TUF Z370-Plus Gaming is the perfect foundation for your ATX battle rig: a solid, durable and camouflaged force that's fit for today's fights, and with the durability to handle multiple upgrades for the campaigns of tomorrow.
Gaming Audio
DTS CUSTOM FOR GAMING HEADSETS
Hone your battleskills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.
Outshine the competition
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Intel Ethernet
MORE THROUGHPUT, LESS CPU USAGE
TUF Z370-Plus Gaming features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Turbo LAN
NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritise game-related data transmissions, smoothing network operations every time you play!
Make Your Memory Go Faster
ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing DDR4 memory speeds of 4000MHz with all slots populated — and even beyond!
