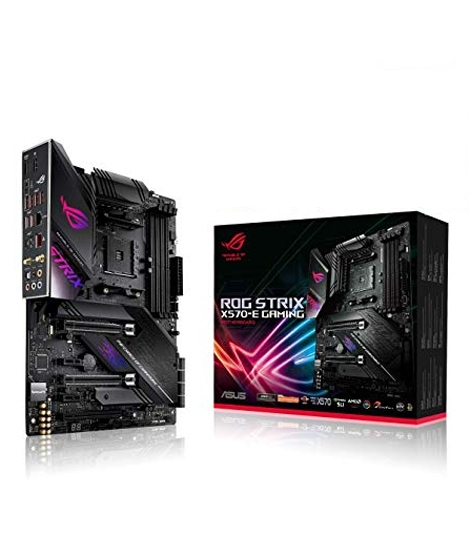

Asus ROG STRIX X570-E AMD AM4 ATX WIFI Gaming Motherboard
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for Asus ROG STRIX X570-E AMD AM4 ATX WIFI Gaming Motherboard with express shipping all over Pakistan.
Features:
AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
Comprehensive cooling: Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
Gaming networking: 2.5Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
Easy DIY: ROG-patented pre-mounted I/O shield, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience
Specifications:
|
CPU |
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
|
Chipset |
AMD X570 |
|
Memory |
3rd Gen AMD Ryzen™ Processors |
|
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * |
|
|
2nd Gen AMD Ryzen™ Processors |
|
|
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * |
|
|
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
|
|
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory |
|
|
Dual Channel Memory Architecture |
|
|
Graphic |
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
|
Multi-VGA output support : HDMI/DisplayPort ports |
|
|
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz |
|
|
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
|
|
Multi-GPU Support |
3rd and 2nd Gen AMD Ryzen™ Processors |
|
Supports NVIDIA® 2-Way SLI® Technology |
|
|
Supports AMD 3-Way CrossFireX™ Technology |
|
|
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
|
|
Supports AMD 2-Way CrossFireX™ Technology |
|
|
Expansion Slots |
3rd Gen AMD Ryzen™ Processors |
|
2 x PCIe 4.0 x16 (x16 or dual x8) |
|
|
2nd Gen AMD Ryzen™ Processors |
|
|
2 x PCIe 3.0 x16 (x16 or dual x8) |
|
|
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
|
|
1 x PCIe 3.0 x16 (x8 mode) |
|
|
AMD X570 chipset |
|
|
1 x PCIe 4.0 x16 (max at x4 mode) *1 |
|
|
2 x PCIe 4.0 x1 |
|
|
Storage |
3rd Gen AMD Ryzen™ Processors : |
|
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support |
|
|
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : |
|
|
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
|
|
AMD X570 chipset : |
|
|
1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
|
|
8 x SATA 6Gb/s port(s), |
|
|
Support Raid 0, 1, 10 |
|
|
LAN |
Intel® I211-AT, 1 x Gigabit LAN Controller(s) |
|
Realtek® RTL8125-CG 2.5G LAN |
|
|
Anti-surge LANGuard |
|
|
ROG GameFirst Technology |
|
|
Wireless Data Network |
Supports channel bandwidth: HT20/HT40/HT80/HT160 |
|
Intel® Wi-Fi 6 AX200 |
|
|
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz |
|
|
Up to 2.4Gbps transfer speed |
|
|
Bluetooth |
Bluetooth® 5.0 |
|
Audio |
SupremeFX 8-Channel High Definition Audio CODEC S1220A |
|
- Dual OP Amplifiers |
|
|
- Impedance sense for front and rear headphone outputs |
|
|
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
|
|
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input |
|
|
- SupremeFX Shielding Technology |
|
|
- Supports up to 32-Bit/192kHz playback *2 |
|
|
Audio Feature : |
|
|
- Optical S/PDIF out port(s) at back panel |
|
|
- Sonic Radar III |
|
|
- Sonic Studio III + Sonic Studio Link |
|
|
USB Ports |
3rd Gen AMD RyzenTM Processors : |
|
4 x USB 3.2 Gen 2 port(s) (4 at back panel, ) |
|
|
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : |
|
|
4 x USB 3.2 Gen 1 port(s) |
|
|
AMD X570 chipset : |
|
|
1 x USB 3.2 Gen 2 front panel connector port(s) |
|
|
AMD X570 chipset : |
|
|
4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) |
|
|
AMD X570 chipset : |
|
|
2 x USB 3.2 Gen 1 port(s) (2 at mid-board) |
|
|
AMD X570 chipset : |
|
|
4 x USB 2.0 port(s) (4 at mid-board) |
|
|
ROG Exclusive Features |
ROG Exclusive Software |
|
- RAMCache III |
|
|
- CPU-Z |
|
|
- GameFirst V |
|
|
- Sonic Studio III + Sonic Studio Link |
|
|
- Sonic Radar III |
|
|
- Overwolf |
|
|
Special Features |
5-Way Optimization by Dual Intelligent Processors 5 |
|
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. |
|
|
TPU |
|
|
- Auto Tuning, TurboV, GPU Boost |
|
|
Gamer's Guardian: |
|
|
- DRAM Overcurrent Protection |
|
|
- Stainless Steel Back I/O |
|
|
- Highly Durable Components |
|
|
- DIGI+ VRM |
|
|
- SafeSlot |
|
|
- ESD Guards on LAN, Audio,and USB ports |
|
|
ASUS EPU : |
|
|
- EPU |
|
|
AURA : |
|
|
- Aura Lighting Control |
|
|
- Addressable Gen 2 Header |
|
|
ASUS Exclusive Features : |
|
|
- USB BIOS Flashback® |
|
|
- AI Suite 3 |
|
|
- Ai Charger |
|
|
- ASUS NODE : hardware control interface |
|
|
- BIOS Flashback® Button |
|
|
ASUS EZ DIY : |
|
|
- ASUS CrashFree BIOS 3 |
|
|
- ASUS EZ Flash 3 |
|
|
ASUS Q-Design : |
|
|
- ASUS Q-Code |
|
|
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) |
|
|
- ASUS Q-Slot |
|
|
- ASUS Q-DIMM |
|
|
Gaming Aesthetics : |
|
|
- AURA-RGB Lighting |
|
|
Back I/O Ports |
1 x DisplayPort |
|
1 x HDMI |
|
|
1 x Optical S/PDIF out |
|
|
5 x Audio jack(s) |
|
|
1 x Anti-surge 2.5G LAN (RJ45) port |
|
|
1 x USB BIOS Flashback® Button(s) |
|
|
1 x ASUS Wi-Fi Module |
|
|
7 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) |
|
|
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) |
|
|
Anti-surge LAN (RJ45) port |
|
|
Internal I/O Ports |
1 x PCH_FAN |
|
1 x AAFP connector |
|
|
2 x Aura RGB Strip Header(s) |
|
|
2 x Addressable Gen 2 header(s) |
|
|
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|
|
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support |
|
|
1 x SPI TPM header |
|
|
8 x SATA 6Gb/s connector(s) |
|
|
1 x CPU Fan connector(s) |
|
|
1 x CPU OPT Fan connector(s) |
|
|
2 x Chassis Fan connector(s) |
|
|
1 x AIO_PUMP connector |
|
|
1 x W_PUMP+ connector |
|
|
1 x 24-pin EATX Power connector(s) |
|
|
1 x 8-pin ATX 12V Power connector(s) |
|
|
1 x 4-pin ATX 12V Power connector(s) |
|
|
1 x Front panel audio connector(s) (AAFP) |
|
|
1 x Thermal sensor connector(s) |
|
|
1 x Clear CMOS jumper(s) |
|
|
1 x Node Connector(s) |
|
|
1 x System panel connector |
|
|
1 x T_Sensor Connector |
|
|
1 x M.2 Fan Header |
|
|
1 x USB 3.2 Gen 2 (up to 10Gbps) connector |
|
|
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
|
|
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. |
|
Manageability |
WOL, PXE |
|
Support Disc |
Overwolf |
|
Anti-virus software (OEM version) |
|
|
WinRAR |
|
|
Operating System |
Windows® 10 64-bit |
|
Form Factor |
ATX Form Factor |
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
