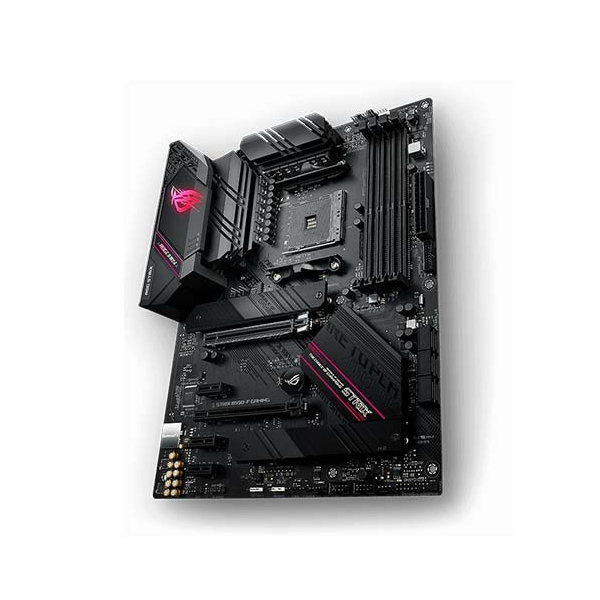

Asus ROG Strix B550-F Gaming Motherboard
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for Asus ROG Strix B550-F Gaming Motherboard with express shipping all over Pakistan.
Specifications:
|
Chipset |
AMD B550 |
|
Memory |
AMD RyzenTM 4000 G-Series Processor |
|
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.) /3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
|
|
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666 /2400/2133 MHz Un-buffered Memory |
|
|
OptiMem II |
|
|
Dual Channel Memory Architecture |
|
|
ECC Memory (ECC mode) support varies by CPU. |
|
|
Graphic |
1 x HDMI 2.1(4K@60HZ) |
|
1 x DisplayPort 1.2 |
|
|
*Graphics specifications may vary between CPU types. |
|
|
Integrated Graphics Processor |
|
|
Multi-GPU Support |
Supports AMD 2-Way CrossFireX Technology |
|
Expansion Slots |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors |
|
AMD B550 Chipset |
|
|
1 x PCIe 3.0 x16 (x4 mode) * |
|
|
3 x PCIe 3.0 x1 |
|
|
1 x PCIe 3.0 x16 (x16 mode) |
|
|
1 x PCIe 4.0 x16 (x16 mode) |
|
|
Storage |
AMD RyzenTM 4000 G-Series Processors : |
|
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : |
|
|
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports |
|
|
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) |
|
|
AMD B550 Chipset : |
|
|
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* |
|
|
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
|
|
6 x SATA 6Gb/s port(s) |
|
|
Support Raid 0, 1, 10 |
|
|
LAN |
Intel® I225-V 2.5Gb Ethernet |
|
ASUS LANGuard |
|
|
Audio |
- Audio Shielding |
|
- Premium Japanese audio capacitors |
|
|
- Audio Cover |
|
|
- Optical S/PDIF in port(s) at back panel |
|
|
ROG SupremeFX8-Channel High Definition Audio CODEC S1220A |
|
|
- Dual OP Amplifiers |
|
|
- Impedance sense for front and rear headphone outputs |
|
|
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
|
|
- High quality120dBSNR stereo playback outputand113dBSNR recording input |
|
|
- Supports up to 32-Bit/192kHz playback * |
|
|
Audio Feature : |
- SupremeFX Shielding™ Technology |
|
- Gold-plated jacks |
|
|
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
|
|
USB Ports |
Front USB Port ( Total 6 ) |
|
Rear USB Port ( Total 8 ) |
|
|
4 x USB 3.2 Gen 1 port(s)(4 x Type-A) |
|
|
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) |
|
|
2 x USB 3.2 Gen 1 port(s) |
|
|
2 x USB 2.0 port(s) |
|
|
4 x USB 2.0 port(s) |
|
|
Software Features |
ROG Exclusive Software |
|
- RAMCache III |
|
|
- ROG CPU-Z |
|
|
- GameFirst VI |
|
|
- Sonic Studio III + Sonic Studio Virtual Mixer |
|
|
- Sonic Radar III |
|
|
- DTS® Sound Unbound |
|
|
- Overwolf |
|
|
- Anti-virus software |
|
|
ASUS Exclusive Software Features |
|
|
Armoury Crate |
|
|
- Aura Creator |
|
|
- Aura Sync |
|
|
- AI Noise Cancelling Microphone |
|
|
AI Suite 3: |
|
|
- PPSU |
|
|
EPU |
|
|
DIGI+ VRM |
|
|
Fan Xpert 4 |
|
|
TurboV EVO |
|
|
- EZ update |
|
|
WinRAR |
|
|
UEFI BIOS |
|
|
ASUS EZ DIY |
|
|
- ASUS CrashFree BIOS 3 |
|
|
- ASUS EZ Flash 3 |
|
|
- ASUS UEFI BIOS EZ Mode |
|
|
ASUS Special Features |
Aura Sync |
|
- Standard RGB header(s) |
|
|
- Addressable Gen 2 RGB header(s) |
|
|
ASUS Q-Design |
|
|
- ASUS Q-DIMM |
|
|
- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) |
|
|
- ASUS Q-Slot |
|
|
ASUS Thermal Solution |
|
|
- Aluminum M.2 heatsink |
|
|
ASUS EZ DIY |
|
|
-BIOS FlashBack™ button |
|
|
-BIOS FlashBack™ LED |
|
|
-Clear CMOS header |
|
|
-ProCool |
|
|
-Pre-mounted I/O shield |
|
|
- SafeSlot |
|
|
Back I/O Ports |
1 x BIOS FlashBack™ Button(s) |
|
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) |
|
|
1 x Intel® I225-V 2.5Gb Ethernet |
|
|
4 x USB 3.2 Gen 1 |
|
|
1 x DisplayPort |
|
|
1 x HDMI |
|
|
2 x USB 2.0 |
|
|
1 x Optical S/PDIF out |
|
|
5 x Gold-plated audio jacks |
|
|
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) |
|
|
Internal I/O Ports |
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) |
|
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
|
|
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) |
|
|
1 x Thunderbolt header(s) |
|
|
1 x CPU Fan connector(s) |
|
|
1 x CPU OPT Fan connector(s) |
|
|
3 x Chassis Fan connector(s) |
|
|
1 x AIO_PUMP connector |
|
|
1 x AAFP connector |
|
|
2 x Aura RGB Strip Header(s) |
|
|
1 x Addressable Gen 2 header(s) |
|
|
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|
|
6 x SATA 6Gb/s connector(s) |
|
|
1 x 24-pin EATX Power connector(s) |
|
|
1 x 8-pin ATX 12V Power connector(s) |
|
|
1 x 4-pin ATX 12V Power connector(s) |
|
|
1 x System panel(s) |
|
|
1 x Thermal sensor connector(s) |
|
|
1 x Clear CMOS jumper(s) |
|
|
Accessories |
1 x M.2 SSD screw package(s) |
|
1 x M.2 Rubber Package(s) |
|
|
User´s manual |
|
|
4 x SATA 6Gb/s cable(s) |
|
|
1 x Supporting DVD |
|
|
1 x ROG Strix stickers |
|
|
1 x Cable ties pack(s) |
|
|
1 x Extension cable for Addressable LED |
|
|
1 x ROG Thank you card |
|
|
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
|
Manageability |
WOL by PME, PXE |
|
Operating System |
Windows® 10 64-bit |
|
Form Factor |
ATX Form Factor |
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
