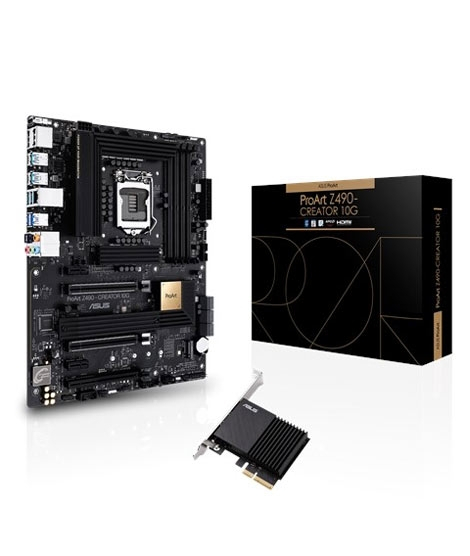

Asus ProArt Z490-CREATOR 10G LGA-1200 ATX Motherboard
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for Asus ProArt Z490-CREATOR 10G LGA-1200 ATX Motherboard with express shipping all over Pakistan.
Features:
• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
• Ultrafast connectivity: Two Thunderbolt™ 3 Type-C ports, two M.2, HYPER 10G LAN card and onboard 2.5G Intel® LAN provide power and speed
• Intelligent optimization: AI Overclocking, AI Cooling and CreationFirst automatically optimize CPU frequencies, fan speeds and network traffic for enhanced system performance and work efficiency
• Powerful performance: 12+2 DrMOS power stages, multi-GPU support and improved memory frequency and stability empower creativity
• Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for durability
• ProArt Creator Hub: Centralized software for one-stop monitoring and management of ASUS ProArt series products enables efficient content creation workflows
Every aspect of ASUS ProArt motherboards is built to remove barriers and deliver optimal performance to content creators who work in 3D modeling and rendering, animation or media production. The series empowers you to concentrate on your creativity and expand what is possible.
ULTRAFAST CONNECTIVITY FOR SEAMLESS SPEED
Onboard 2.5G Intel® Ethernet and optional 10G Ethernet card are both provided to boost cloud- and internet-based communication for accelerated workflow. A comprehensive set of high-performance I/O ports — including two Thunderbolt™ 3 Type-C ports — enable quick data transfer speeds and extensive storage options with flexible, hassle-free connectivity.
Dual Thunderbolt™ 3 Type-C Ports
Two Thunderbolt 3 Type-C ports deliver up to 40 Gbps of aggregate interface bandwidth for quickly completing tasks that involve data transfer.
HYPER 10G LAN Card
Designed to meet the high standards of content creators and power users, HYPER 10G LAN card is up to 10 times faster than standard Gigabit Ethernet.
Onboard 2.5G Intel® Ethernet
Featuring Intel® I225-V Ethernet, you can take advantage of the 2.5 Gigabit bandwidth to smoothly stream high-resolution videos and enjoy faster file transfers.
Dual M.2 slots
One M.2 slot supports SATA and PCIe® 3.0 x4 modes, and the other supports PCIe 3.0 x4 for NVMe, offering up to 32 Gbps data-transfer speeds and flexible M.2 interfaces.
Onboard 2.5G Intel® Ethernet
Onboard 2.5G Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, high-res video streaming and smoother lag-free gaming.
INTELLIGENT OPTIMIZATION
ASUS ProArt Z490-CREATOR 10G offers simple and flexible tools that enhance almost every aspect of your content-creation system, giving you the fast, intuitive control needed for efficient workflow. It features dynamic automated tuning with AI overclocking and AI cooling, in addition to CreationFirst software, which prioritizes and optimizes your network traffic for faster, lag-free online work.
AI Overclocking
Tuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.
AI Cooling
AI Cooling automatically manages and controls motherboard connected fans, ensuring the most efficient settings depending on the current system load and temperature.
Network Optimization
CreationFirst is ASUS-exclusive network-optimization software that helps you streamline your workflow.
ProArt Creator Hub
ProArt Creator Hub is a centralized software that allows you to monitor and control any connected ProArt series products.
POWERFUL PERFORMANCE
FOR UNSTOPPABLE CREATIVITY
Creativity demands performance. An ASUS ProArt Z490-CREATOR 10G delivers excellent performance — no matter the task – to empower you to be productive and bring your ideas to life.
Robust Power Design
Digital power control and an array of DrMOS power stages ensure that ASUS ProArt Z490-CREATOR 10G has the strength to handle powerful Intel CPUs.
Multi-GPU Support
ASUS ProArt Z490-CREATOR 10G features three PCIe® 3.0 x16 slots for high-powered graphics cards such as NVIDIA® Quadro®, enabling enhanced performance in professional design, modeling and simulation and rendering applications.
Memory Go Faster
ASUS OptiMem II memory trace layout improves memory stability and compatibility, allows lower memory latencies at equivalent voltages and increases memory frequency margin.
TRUSTED STABILITY FOR RELIABILITY
ASUS ProArt Z490-CREATOR 10G was engineered and rigorously tested to ensure that it empowers creativity by offering superior quality, stability and compatibility.
24/7 Reliability
Optimized for around-the-clock operations, ASUS ProArt Z490-CREATOR 10G is tested under temperatures of up to 45° C and humidity of up to 80% in order to ensure it can thrive in different environments.
Solid Compatibility Validation
ASUS ProArt Z490-CREATOR 10G has been extensively tested and validated under various environments and applications for compatibility and reliability.
Protect your Graphics Card
SafeSlot is a PCIe® slot reengineered by ASUS to provide optimized attachment and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot fortifies the slot with metal for enhanced strength and durability.
Specifications:
|
CPU |
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * |
|
Supports Intel® 14 nm CPU |
|
|
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
|
|
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
|
Chipset |
Intel® Z490 |
|
Memory |
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/ 3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/ 2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * |
|
Dual Channel Memory Architecture |
|
|
Supports Intel® Extreme Memory Profile (XMP) |
|
|
OptiMem II |
|
|
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively |
|
|
Thunderbolt |
2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs |
|
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz* |
|
|
* VGA resolution support depends on VGA cards´ resolution. |
|
|
Data transfer rate up to 40 Gbps |
|
|
Daisy-chain up to 12 Thunderbolt devices |
|
|
Up to 5V/3A, 15W charging support |
|
|
Graphics |
Integrated Graphics Processor |
|
1 x DisplayPort 1.4 ** |
|
|
1 x HDMI 1.4b |
|
|
*Graphics specifications may vary between CPU types. |
|
|
Multi-GPU Support |
Supports AMD 3-Way CrossFireX™ Technology |
|
Expansion Slots |
Intel® 10th Gen Processors |
|
2 x PCIe 3.0 x16 (x16 or dual x8) *1 |
|
|
Intel® Z490 Chipset |
|
|
1 x PCIe 3.0 x16 (x4 mode) *2 |
|
|
2 x PCIe 3.0 x1 |
|
|
Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
|
Intel® Z490 Chipset : |
|
|
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3 |
|
|
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 |
|
|
6 x SATA 6Gb/s port(s) |
|
|
Support Raid 0, 1, 5, 10 |
|
|
Intel® Rapid Storage Technology supports |
|
|
Intel® Optane™ Memory Ready |
|
|
LAN |
Intel® I225-V 2.5Gb Ethernet |
|
Audio |
Realtek® ALC S1220A 8-Channel High Definition Audio CODEC |
|
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback |
|
|
- High quality 120 dB SNR stereo playback output and SNR recording input |
|
|
Audio Feature : |
|
|
- Optical S/PDIF out port(s) at back panel |
|
|
- Audio Shielding |
|
|
- Dedicated audio PCB layers |
|
|
- Premium Japanese audio capacitors |
|
|
- Audio Cover |
|
|
- Unique de-pop circuit |
|
|
USB Ports |
Intel® Thunderbolt™ 3 Controller : |
|
2 x USB 3.2 Gen 2 port(s) (USB Type-C®) |
|
|
Rear USB Port ( Total 6 ) |
|
|
4 x USB 3.2 Gen 2 port(s)(4 x Type-A) |
|
|
2 x USB 3.2 Gen 1 port(s)(2 x Type-A) |
|
|
Front USB Port ( Total 7 ) |
|
|
1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C®) |
|
|
2 x USB 3.2 Gen 1 port(s)(2 x Type-A) |
|
|
4 x USB 2.0 port(s) |
|
|
Operating System Support |
Windows® 10 64-bit |
|
Software Features |
ASUS Exclusive Software |
|
Armoury Crate |
|
|
- Aura Creator |
|
|
- Aura Sync |
|
|
AI Suite 3 |
|
|
5-Way Optimization with AI Overclocking |
|
|
- TPU |
|
|
- EPU |
|
|
- Digi+ VRM |
|
|
- EZ update |
|
|
- Fan Xpert 4 |
|
|
- Turbo app |
|
|
ProArt Creator Hub |
|
|
AI Charger |
|
|
Optimization tool specially for content creators |
|
|
WinRAR |
|
|
UEFI BIOS |
|
|
AI Optimization Guide |
|
|
ASUS EZ DIY |
|
|
- ASUS CrashFree BIOS 3 |
|
|
- ASUS EZ Flash 3 |
|
|
- ASUS UEFI BIOS EZ Mode |
|
|
FlexKey |
|
|
- ASUS UEFI BIOS EZ Mode |
|
|
ASUS Special Features |
ASUS 5X PROTECTION III |
|
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS) |
|
|
- ASUS Enhanced DRAM Overcurrent Protection |
|
|
- ASUS ESD Guards |
|
|
- ASUS LANGuard |
|
|
- ASUS Overvoltage Protection |
|
|
- ASUS SafeSlot Core+ |
|
|
- ASUS Stainless-Steel Back I/O |
|
|
ASUS Q-Design |
|
|
- ASUS Q-DIMM |
|
|
- ASUS Q-LED |
|
|
- ASUS Q-Shield |
|
|
- ASUS Q-Slot |
|
|
ASUS Thermal Solution |
|
|
- Aluminum heatsink design |
|
|
ASUS EZ DIY |
|
|
- Procool |
|
|
- SafeSlot |
|
|
AURA Sync |
|
|
- Standard RGB headers |
|
|
- Addressable Gen 2 RGB header(s) |
|
|
- Addressable Gen 2 RGB header |
|
|
Back I/O Ports |
2 x Thunderbolt 3 ports TypeC™ |
|
2 x DisplayPort IN ports for Thunderbolt™ 3 |
|
|
1 x HDMI |
|
|
1 x LAN (2.5G) port(s) |
|
|
4 x USB 3.2 Gen 2 Type-A |
|
|
2 x USB 3.2 Gen 1 Type-A |
|
|
1 x Optical S/PDIF out |
|
|
5 x Audio jack(s) |
|
|
Internal I/O Ports |
1 x CPU Fan connector(s) |
|
1 x CPU OPT Fan connector(s) |
|
|
3 x Chassis Fan connector(s) |
|
|
1 x AIO_PUMP connector |
|
|
2 x Aura RGB Strip Headers |
|
|
1 x Addressable Gen 2 header(s) |
|
|
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C) |
|
|
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) |
|
|
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|
|
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
|
|
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
|
|
6 x SATA 6Gb/s connector(s) |
|
|
1 x 24-pin EATX Power connector(s) |
|
|
1 x 8-pin EATX 12V Power connectors |
|
|
1 x Front panel audio connector(s) (AAFP) |
|
|
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function |
|
|
1 x Thermal sensor connector(s) |
|
|
1 x CPU OV |
|
|
1 x Clear CMOS jumper(s) |
|
|
1 x COM port header |
|
|
Accessories |
I/O Shield |
|
4 x SATA 6Gb/s cable(s) |
|
|
1 x M.2 Screw Package |
|
|
1 x Supporting DVD |
|
|
1 x DisplayPort cable |
|
|
User manual |
|
|
1 x CPU Fan Holder |
|
|
1 x 2-in-1 Rubber pad |
|
|
1 x HYPER 10G LAN CARD |
|
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
|
Manageability |
WOL by PME, PXE |
|
Operating System |
Windows® 10 64-bit |
|
Form Factor |
ATX Form Factor |
|
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
