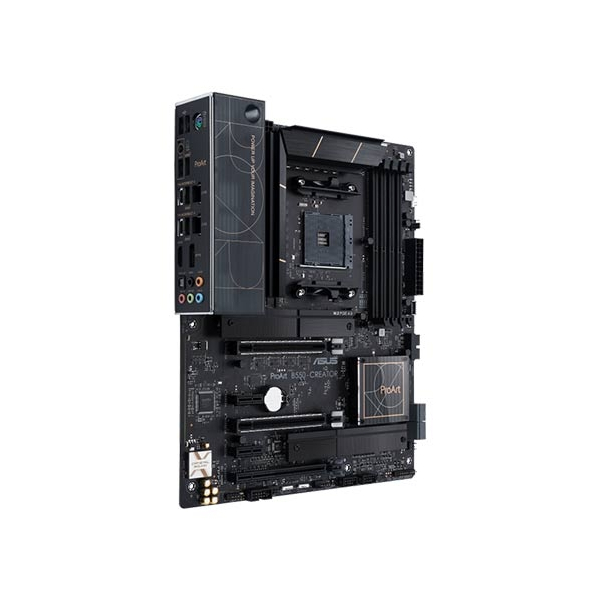

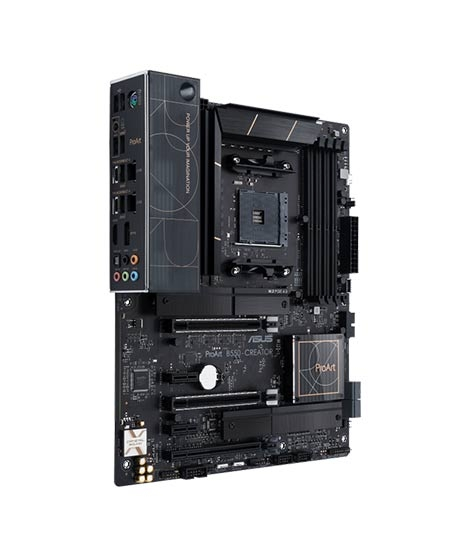

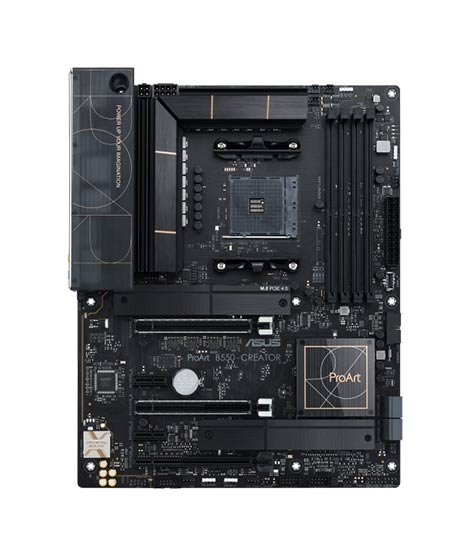

Asus ProArt Ryzen AM4 ATX Motherboard (B550-Creator)
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
Asus ProArt ATX Motherboard Delivered All Over Pakistan
iShopping.pk brings you the best price for Asus ProArt Ryzen AM4 ATX Motherboard (B550-Creator) with express shipping all over Pakistan.
Specifications:
|
CPU |
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
|
Chipset |
B550 |
|
Memory |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/
AMD RyzenTM 4000 G-Series Processors DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/
OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
|
Graphics |
1 x HDMI™ 2.1 (4K@60Hz) |
|
Expansion Slots |
2 x PCIe 4.0/3.0 x16 (x16, x8/x8) 2 x PCIe 3.0 x16 (x16 or dual x8)*
AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** 2 x PCIe 3.0 x1 slots*** * Support PCIe bandwidth bifurcation for RAID on CPU function. ** PCIe 3.0 x4 will be switched from Thunderbolt™ 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 4 will have no output *** These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will |
|
Storage |
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD RyzenTM 4000 G-Series Processor: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Supports RAID 0, 1, 10 |
|
Ethernet |
2 x Intel® I225-V 2.5Gb Ethernet |
|
USB |
Rear USB:Total 8 ports 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|
Audio |
– Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback*” Audio Features – Power pre-regulator reduces power input noise to ensure consistent performance – Rear optical S/PDIF out port – Premium Japanese audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
|

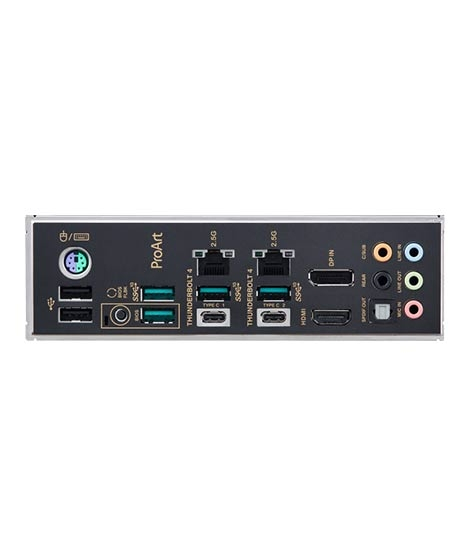

Back Panel I/O Ports |
2 x Thunderbolt™ 4 USB Type-C® port(s) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI™ port 2 x Intel® I225-V 2.5Gb Ethernet ports 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port |
|
Intrernal I/O Connectors |
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header |
|
Special Features |
Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with Dr. MOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Latch – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Box Headers – ProCool II – Pre-mounted I/O shield – SafeSlot AURA Sync – AURA RGB header(s) – Addressable Gen 2 RGB header(s) Bespoke Motherboard Design & Business Focused Features – 24/7 Reliability – Overcurrent Protection |
|
Software Features |
ASUS Exclusive Software Armoury Crate – AURA Creator – AURA Sync – Two-Way AI Noise Cancelation AI Suite 3 – 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU Digi+ VRM Fan Xpert 4 Turbo app – EZ update ASUS CPU-Z IT Management software supported – ASUS Control Center Express(ACCE) ProArt Creator Hub AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey |
|
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
|
Operating System |
Windows® 10 64-bit |
|
Form Factor |
ATX |
Specification
