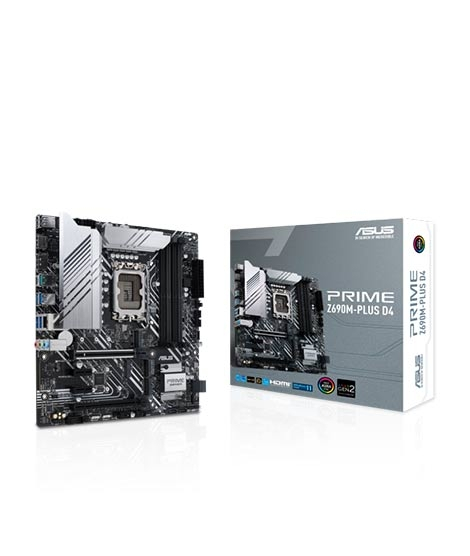

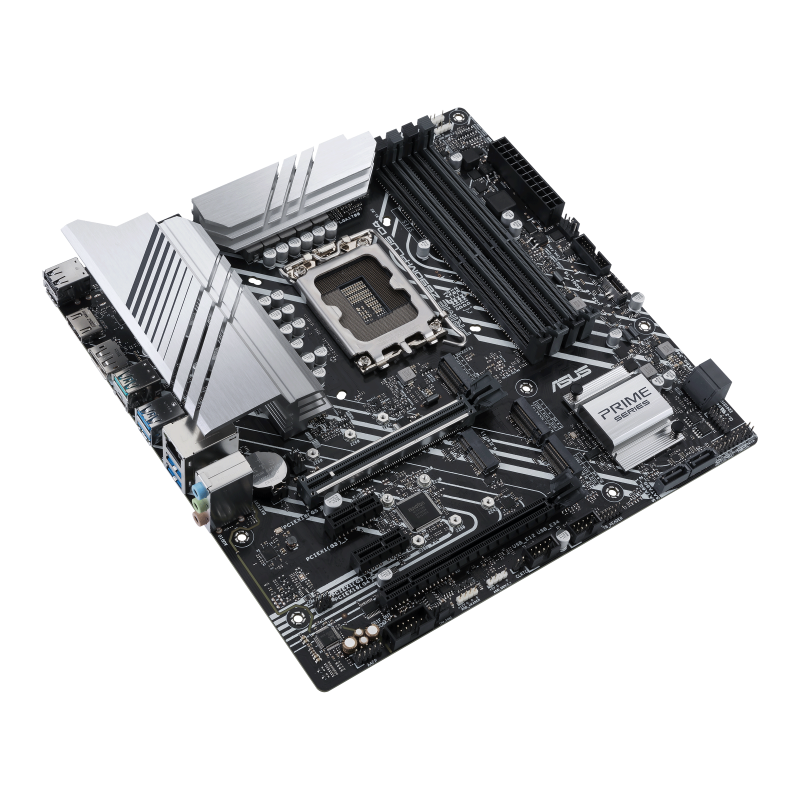

Asus Prime Z690M-Plus D4 Micro ATX Motherboard
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
Asus mATX Motherboard Delivered All Over Pakistan
iShopping.pk brings you the best price for Asus Prime Z690M-Plus D4 Micro ATX Motherboard with express shipping all over Pakistan.
Specifications:
|
Dimensions & Weight / Depth |
24.4 cm |
|
Dimensions & Weight / Width |
24.4 cm |
|
Header / Brand |
ASUS |
|
Mainboard / Chipset Type |
Intel Z690 |
|
Mainboard / Processor Socket |
LGA1700 Socket |
|
Networking / Data Link Protocol |
Ethernet |
|
Fast Ethernet |
|
|
Gigabit Ethernet |
|
|
Video Output / Type |
Graphics adapter (CPU required) |
|
Audio |
|
|
Compliant Standards |
High Definition Audio |
|
Type |
HD Audio (8-channel) |
|
Expansion / Connectivity |
|
|
Expansion Slots |
1 x CPU |
|
4 x DIMM 288-pin |
|
|
1 x PCIe 5.0 x16 |
|
|
1 x PCIe 4.0 x16 (x4 mode) |
|
|
2 x PCIe 3.0 x1 |
|
|
1 x M.2 socket (for Intel CNVi wireless module) |
|
|

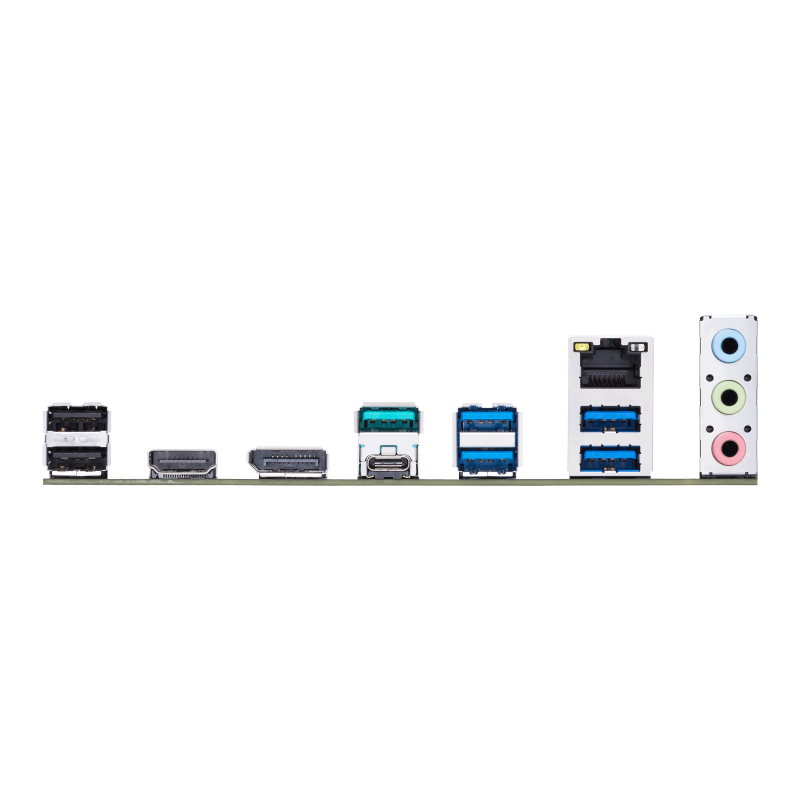

Interfaces |
1 x audio line-in - mini-jack |
|
1 x audio line-out - mini-jack |
|
|
1 x microphone - mini-jack |
|
|
1 x DisplayPort |
|
|
1 x HDMI |
|
|
1 x LAN (Gigabit Ethernet) |
|
|
1 x USB-C Gen2x2 |
|
|
1 x USB 3.2 Gen 2 |
|
|
4 x USB 3.2 Gen 1 |
|
|
2 x USB 2.0 |
|
|
Internal Interfaces |
4 x USB 2.0 - header |
|
1 x USB-C Gen 1 - header |
|
|
2 x USB 3.2 Gen 1 - header |
|
|
1 x audio - header |
|
|
1 x SPI - header |
|
|
1 x serial - header |
|
|
1 x SPDIF out - header |
|
|
1 x Thunderbolt - header |
|
|
Power Connectors |
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
|
RAID Features |
Intel Rapid Storage Technology |
|
Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 |
|
|
SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
|
|
Features |
|
|
BIOS Features |
UEFI BIOS, ASUS EZ Flash 3 |
|
BIOS Type |
AMI |
|
Sleep / Wake Up |
Wake on LAN (WOL), wake on PME |
|
General |
|
|
Chipset Type |
Intel Z690 |
|
Compatible Processors |
(supports 12th Generation Intel Core / Pentium Gold / Celeron) |
|
Max Processors Qty |
1 |
|
Processor Socket |
LGA1700 Socket |
|
Product Type |
Motherboard - micro ATX |
|
LAN |
|
|
Network Interfaces |
Gigabit Ethernet |
|
Miscellaneous |
|
|
Cables Included |
2 x Serial ATA cable |
|
Depth |
24.4 cm |
|
Included Accessories |

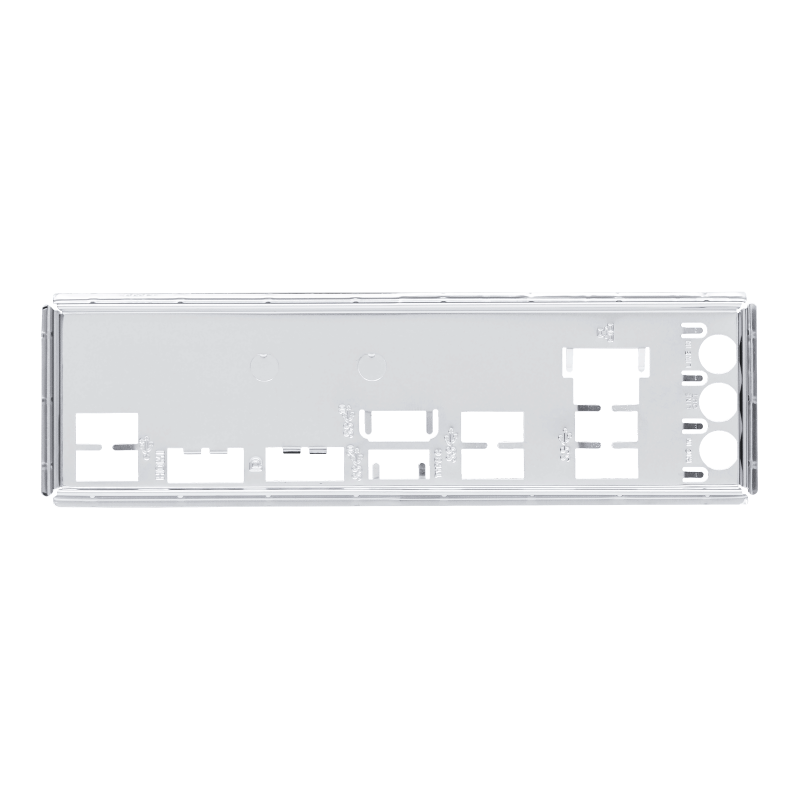

I/O back plate, 2 x M.2 screws |
|
Software Included |
Drivers & utilities, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Flash 3, WinRAR, Norton AntiVirus (Trial) |
|
Width |
24.4 cm |
|
Supported RAM |
|
|
Features |
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
|
Max Size |
128 GB |
|
Registered or Buffered |
Unbuffered |
|
Supported RAM Integrity Check |
Non-ECC |
|
Technology |
DDR4 |
Intel LGA 1700 socket
Ready for 12th Gen Intel Core processors, support PCIe 5.0 and DDR4 and out of box Windows 11 ready
Enhanced Power Solution
10+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
Comprehensive Cooling
Large VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
Next Gen Connectivity
PCIe 5.0, Intel 1 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 1 Type-C connector, Thunderbolt 4 headersupport
Boosted Memory Performance
ASUS OptiMem II proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance
PC DIY Friendly
PCIe 5.0 Safeslot, Q-LED Code
All ASUS Z690 Motherboards designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets
