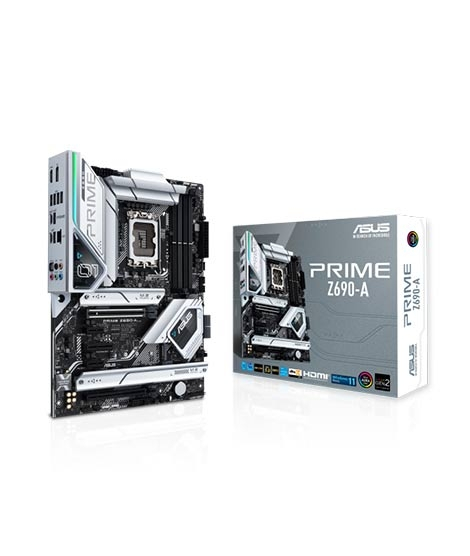

Asus Prime Z690-A LGA 1700 ATX Motherboard
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
Asus Prime ATX Motherboard Delivered All Over Pakistan
iShopping.pk brings you the best price for Asus Prime Z690-A LGA 1700 ATX Motherboard with express shipping all over Pakistan.
Specifications:
|
CPU |
|
|
Chipset |
Intel Z690 |
|
CPU Socket |
LGA 1700 |
|

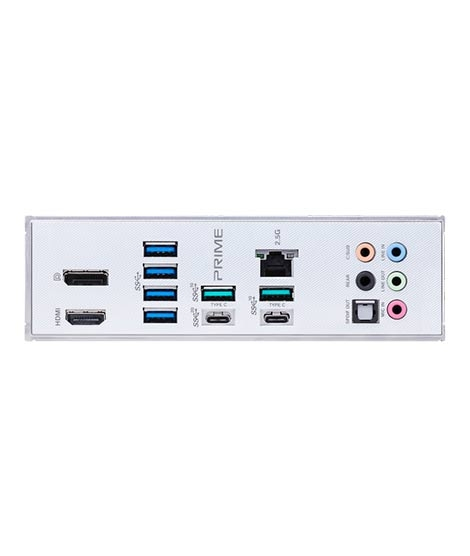

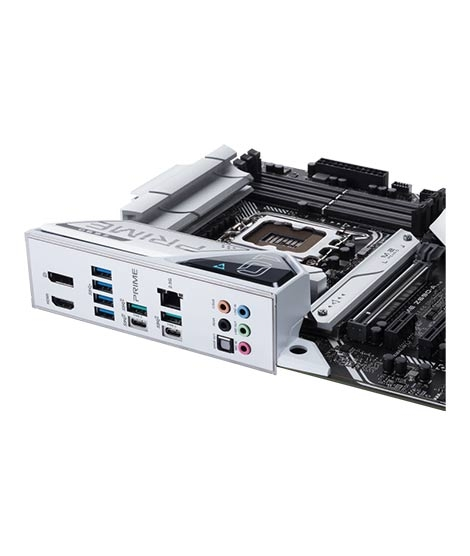

Back Panel I/O |
|
|
USB |
1 x USB 3.2 Gen 2x2 Type-C |
|
1 x USB 3.1 / USB 3.2 Gen 2 Type-C |
|
|
2 x USB 3.1 / USB 3.2 Gen 2 Type-A |
|
|
4 x USB 3.1 / USB 3.2 Gen 1 Type-A |
|
|
Thunderbolt |
None |
|
Display |
1 x DisplayPort |
|
1 x HDMI |
|
|
Audio |
5 x 3.5 mm |
|
1 x S/PDIF |
|
|
Ethernet / Controller |
1 x Intel 2.5Gigabit |
|
Memory |
|
|
Memory Slots |
4 x 288-Pin |
|
Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000 MHz |
|
Maximum Capacity |
128 GB |
|
Channel Architecture |
Dual Channel |
|
ECC Support |
Non-ECC Unbuffered |
|
Storage Expansion |
|
|
SATA |
4 x SATA III |
|
M.2 |
2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) |
|
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) |
|
|
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified)) |
|
|
U.2 |
None |
|
RAID Support |
RAID 0, 1, 5 (M.2) |
|
RAID 0, 1, 5, 10 (M.2) |
|
|
Internal I/O |
|
|
Expansion Slots |
1 x PCIe 5.0 x16 |
|
1 x PCIe 3.0 x16 (x4 mode) |
|
|
1 x PCIe 3.0 x4 |
|
|
2 x PCIe 3.0 x1 |
|
|
USB |
1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port) |
|
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) |
|
|
2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
|
|
Multi-GPU Support |
None |
|
Air Cooling |
1 x 4-Pin CPU |
|
1 x 4-Pin Assistant |
|
|
4 x 4-Pin System |
|
|
1 x Thermal Sensor |
|
|
Liquid Cooling |
2 x 4-Pin Pump |
|
Power Connectors |
1 x 24-Pin Mainboard |
|
2 x 8-Pin ATX |
|
|
Security |
Chassis Intrusion, TPM Header |
|
LED Header |
4 x RGB |
|
Audio |
None |
|
Diagnostics |
Clear CMOS, Power, Voltage Regulation |
|
Add-On |
1 x Thunderbolt Card Header |
|
Legacy |
1 x Serial |
|
BIOS |
|
|
ROM |
256 Mb |
|
Front Panel I/O |
|
|
I/O Connection Headers |
AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
|
Audio |
|
|
Audio Codec |
Realtek S1220A (7.1-Channel) |
|
Software |
|
|
Supported Operating Systems |
Windows 10 (64-Bit) |
|
Physical |
|
|
Form Factor |
ATX |
|
Dimensions |
9.6 x 12" / 24.4 x 30.5 cm |
Designed for 12th Gen Intel Processors
Designed to be used with 12th Gen Intel processors, the PRIME motherboard leverages the CPU's power to deliver power and connectivity suitable for business professionals and gamers alike. When paired with an Intel 12th Gen processor, you unlock PCIe 5.0 connectivity, enhancing speeds for your DDR5 RAM, M.2 storage devices, and your x16 expansion slot. Additionally, you gain support for Intel Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, enhancing system-wide performance.
Power Design
The PRIME motherboard promotes durability, reliability, and stable power delivery with a 16+1 DrMOS system, alloy chokes, and capacitors. ProCool connectors enhance conductivity between power cables and the motherboard interfaces ensuring your motherboard is gaining optimal connection to the power supply.
Cooling
Sporting a comprehensive cooling system designed to balance power and temperature, the PRIME Z690-A utilizes many tools such as a large VRM heatsink, M.2 heatsink, and M.2 backplate with Q-Latch all designed to dissipate heat away from major board components. Hybrid fan headers allow you to connect and manage PWM fans, while Fan Xpert 4 software enables you to adjust fan settings when needed.
ASUS OptiMem II
Using ASUS' proprietary trace layout, the PRIME motherboard allows memory kits to operate at higher frequencies and lower voltages to optimize system performance.
ASUS 5X Protection III
Ensure your system is protected with a multitude of enhancements designed to maintain power and performance efficiency. DIGI+ VRM, ESD Guards, Enhanced DRAM Overcurrent Protection, LANGuard, Overvoltage Protection, SafeSlot, and a Stainless-Steel Back I/O all work together to keep your system running.
ASUS Q-Design
ASUS designed the PRIME Z690-A with an array of accessibility options designed to streamline installation of components and simplify troubleshooting. M.2 Q-Latch, Q-Slot, and Q-Connectors provide support when installing M.2 storage drives, graphics cards, and front-panel cables, respectively. Q-DIMM makes installing RAM modules easy, enabling you to only flip one DIMM lock on the outside section instead of both. Q-LED Code tells you when key parts of your system are functioning as normal upon startup, which makes troubleshooting easy in the event of a failure.
DIY Friendly
Whether you are new or a seasoned builder, the PRIME boasts key enhancements designed to make installation of components a snap. A pre-mounted I/O shield enables you to install the motherboard into your case without fumbling with a metal shield. The PCIe 5.0 x16 expansion port features SafeSlot technology which uses a metal bracket to reinforce the stability of the expansion port for greater retention, ideal for larger graphics cards. Clear CMOS button allows you to reset your BIOS to factory default. Additional features include a CPU socket lever protector and integrated box headers.
Immersive Audio
Dive into your favorite games and experience high-fidelity sound with Realtek S1220A 7.1-channel surround sound. A dedicated internal audio amplifier enhances sound for both headphones and speakers with impedance sense, designed to provide the ideal sound setting for your titles. Jack detection, multi-streaming, and front-panel jack retasking provide additional access points for custom sound preferences. Power pre-regulator reduces power input noise to ensure consistent performance when playing your games. Audio shielding, rear optical S/PDIF out port, premium audio capacitors, dedicated audio PCB layers, audio cover, and unique de-pop circuit support all work together to reduce crosstalk between onboard components for clear and immersive sound. Additionally, you have support with DTS:X Ultra sound, adding additional layers to your audio experience.
Thunderbolt 4 Header
An internal Thunderbolt header allows you to connect an optional Thunderbolt 4 card for enhanced connectivity. Experience up to 40 Gb/s data transfer speeds, daisy-chain capabilities, and displays for streamlined productivity.
Customization
Illuminate your rig in an array of colors and effects with integrated RGB headers. Able to be used in tandem with ASUS AURA Sync and Armoury Crate, you can set custom colors and effects across internal lighting strips as well as external peripherals, adding a layer of self-expression to your desktop.
AI Suite 3
Take advantage of performance and power saving utilities and more with AI Suite 3 which uses an artificial intelligence to manage your system, taking the guesswork out so you can spend more time being productive. You get 5-Way optimization with AI overclocking, TPU, EPU, DIGI+ VRM, and Turbo App, each giving you several accessible options when it comes to squeezing additional performance out of your system.
UEFI BIOS
Manage your system and enable overclocking with UEFI BIOS. Advanced mode allows you to fine-tune your system with a wide range of settings and options while EZ mode simplifies the experience. EZ Flash 3 allows you to upgrade your BIOS firmware to the latest iteration by using a USB drive to save and upload the file. The CrashFree BIOS 3 rescue function resets your system in the event of an update failure or corruption. FlexKey allows you to change the reset button on your case to control other aspects of your system such as lighting effects. You also gain access to an AI Overclocking guide.
