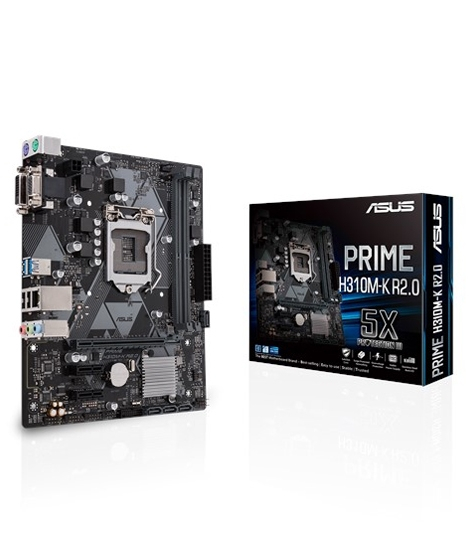

Asus Prime H310M-K R2.0 8th Generation mATX Motherboard
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
iShopping.pk brings you the best price for Asus Prime H310M-K R2.0 8th Generation mATX Motherboard with express shipping all over Pakistan.
Features:
ASUS OptiMem: Carefullrouting of traces and vias to preserve signal integrity for improved memory stability.
Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
5X Protection III: Multiple hardware safeguards for all-round protection.
Specifications:
|
CPU |
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
|
Supports Intel® 14 nm CPU |
|
|
Supports Intel® Turbo Boost Technology 2.0 |
|
|
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
|
|
Chipset |
Intel® H310 |
|
Memory |
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
|
Dual Channel Memory Architecture |
|
|
Supports Intel® Extreme Memory Profile (XMP) |
|
|
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
|
|
Graphic |
Integrated Graphics Processor- Intel® HD Graphics support |
|
Multi-VGA output support : DVI-D/D-Sub ports |
|
|
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
|
|
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
|
|
Maximum shared memory of 1024 MB (for iGPU exclusively) |
|
|
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
|
|
Expansion Slots |
1 x PCIe 3.0/2.0 x16 (x16 mode, gray) |
|
2 x PCIe 2.0 x1 |
|
|
Storage |
Intel® H310 Chipset : |
|
4 x SATA 6Gb/s port(s), gray, |
|
|
LAN |
Realtek® RTL8111H, 1 x Gigabit LAN |
|
Audio |
Realtek® ALC887 8-Channel High Definition Audio CODEC |
|
- Supports : Jack-detection, Front Panel Jack-retasking |
|
|
Audio Feature : |
|
|
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference |
|
|
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals |
|
|
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
|
|
USB Ports |
Intel® H310 Chipset : |
|
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) |
|
|
Intel® H310 Chipset : |
|
|
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
|
|
Special Features |
ASUS 5X Protection III : |
|
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage |
|
|
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! |
|
|
- ASUS Overvoltage Protection: World-class circuit-protecting power design |
|
|
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! |
|
|
- ASUS DIGI+ VRM: 4 Phase digital power design |
|
|
ASUS OptiMem： |
|
|
- Optimem (Improved DDR4 stability) |
|
|
ASUS EPU : |
|
|
- EPU |
|
|
ASUS Exclusive Features : |
|
|
- AI Suite 3 |
|
|
- Ai Charger |
|
|
- PC Cleaner |
|
|
ASUS Quiet Thermal Solution : |
|
|
- Stylish Fanless Design Heat-sink solution |
|
|
- ASUS Fan Xpert |
|
|
ASUS EZ DIY : |
|
|
- ASUS CrashFree BIOS 3 |
|
|
- ASUS EZ Flash 3 |
|
|
- ASUS UEFI BIOS EZ Mode |
|
|
ASUS Q-Design : |
|
|
- ASUS Q-DIMM |
|
|
Back I/O Ports |
1 x PS/2 keyboard (purple) |
|
1 x PS/2 mouse (green) |
|
|
1 x DVI-D |
|
|
1 x D-Sub |
|
|
1 x LAN (RJ45) port(s) |
|
|
2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps |
|
|
2 x USB 2.0 |
|
|
3 x Audio jack(s) |
|
|
Internal I/O Ports |
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) |
|
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|
|
1 x COM port(s) connector(s) |
|
|
4 x SATA 6Gb/s connector(s) |
|
|
1 x CPU Fan connector(s) (1 x 4 -pin) |
|
|
1 x Chassis Fan connector(s) (1 x 4 -pin) |
|
|
1 x S/PDIF out header(s) |
|
|
1 x 24-pin EATX Power connector(s) |
|
|
1 x 4-pin ATX 12V Power connector(s) |
|
|
1 x Front panel audio connector(s) (AAFP) |
|
|
1 x Clear CMOS jumper(s) |
|
|
1 x System panel connector |
|
|
1 x Speaker connector |
|
|
Accessories |
User's manual |
|
I/O Shield |
|
|
2 x SATA 6Gb/s cable(s) |
|
|
1 x Supporting DVD |
|
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information |
|
Manageability |
WOL by PME, PXE |
|
Operating System |
Windows® 10 64-bit |
|
Form Factor |
mATX Form Factor |
|
8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) |
Specification
